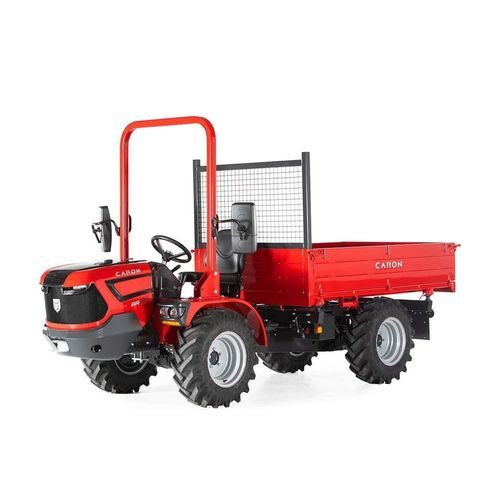

1-person utility vehicle 100 EVO 5 SERIES

diesel4x4with dump bed

The Series 100 is the smallest model of Caron range. Thanks to the lightweight and small size, it is extremely agile and handy, ideal for private users. The permanent 4-wheel drive and the double hydraulic circuit braking system on all 4 wheels guarantee safety and stability on every ground. The water cooled Kohler engine (3 cyl. / 1649cc) has 25 hp with a 100 Nm torque and it is approved according to the latest Stage V emissions regulations. Total approved mass of 3500 kg and payload up to 2000 kg. Gearbox is available in two versions: with 18 speeds (12+6) or synchronized with 24 speeds (16+8) Available in articulated (AR) or front steering wheels (ST) version, with approved closed or open cab or protection arch. PROTECTION ARCH, OPEN OR CLOSED CAB All the models of the AR/ST range are available in three different fittings: from the simple roll bar to the open or closed cabs with heating system. Particular attention has been paid to this spacious and completely sound-proofed cab to ensure the highest comfort level to the driver. The cab - approved as Rops - is equipped with heating system, openable windscreen and rearview mirrors. SERIES AR - ARTICULATED VERSION AR version (articulated) is characterized by the hydraulic steering in the central joint. Compared to the front wheel-steering version, it provides a reduced turning radius and the passage of the rear wheels on the front wheels' trails. The AR models are particularly suitable for the operators working in very reduced places and narrow passages. They are available in different widths and wheelbases.
