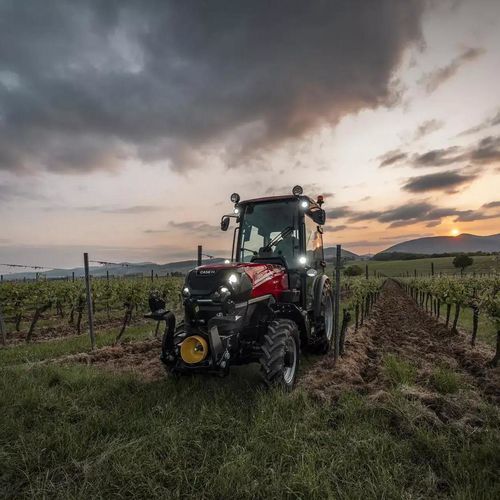

Narrow tractor Quantum Series

powershuttlevineyard4-cylinder

Overview
The Case IH Quantum series is designed to meet the specific requirements of orchard and vineyard operations. Quantum tractors (75–120 hp) deliver dedicated features for narrow-row work, municipal tasks and green-space maintenance. The 2025 models bring improvements in capability, performance and operator comfort to reduce fatigue during long working days.

Main features

• Rated power: 75–120 hp
• Cylinders: 4
• Engine displacement: 3,600 cm³
• Hydraulic flow: 64 or 82 L/min (depending on configuration)

Range and applications

• QUANTUM V: width 1,063 mm, power 75–120 hp, ideal for very narrow vineyards (RI 500 mm tires).
• QUANTUM N: width 1,228 mm, standard tires 320/85 R24, suited to tasks requiring sub-1.3 m width (option: RI 525 mm tires for narrow version).
• QUANTUM F: width 1,382 mm, designed for fruit-growing with regular row spacing (RI 575 mm tires).
• QUANTUM CL: width 1,569 mm, low center of gravity for improved stability on slopes or with front loader (RI 650 mm tires).

Cab and operator comfort
New 4-post comfort cab with high-visibility windscreen and redesigned ergonomics. Roomier workstation with available cab suspension (CL and F versions) and premium padded seat across all versions to limit operator fatigue during extended shifts.

Engine
The FPT F36 engine provides increased power and approximately 5% higher torque while maintaining maneuverability and visibility. Power range 75–120 hp. The 75 hp model uses a 3.4 L 2-valve engine and does not require AdBlue.

Transmission
Customizable transmissions: available Powershuttle and ActiveDrive 2 options, ergonomically repositioned gear lever, optional creeping speed, adjustable shuttle aggressiveness and parking lock available.

PTO
Up to 3 standard PTO speeds; proportional PTO speeds available as an option. PTO engagement adjustable across 3 modes according to load. Front/rear automatic PTO engagement can be activated from the new right-post display and armrest controls.

Hydraulic system
Standard open-centre dual-pump hydraulic system (64 L/min). Optional 80 L/min load-sensing version available. Dedicated 36 L/min pump for steering and lubrication.

Support and services
Professional dealer network supported by local teams, diagnostic tools, operator training and parts service, providing assistance and logistics for efficient after-sales support.

Technical specifications

• Rated power: 75–120 hp
• Cylinders: 4
• Displacement: 3,600 cm³
• Hydraulic flow: 64 L/min (standard) or 80 L/min (option)
• Steering pump: 36 L/min
• Smallest engine (75 hp): 3.4 L, 2-valve, no AdBlue
• Available transmissions: Powershuttle, ActiveDrive 2, creeping speed (option)
• PTO: up to 3 speeds + optional proportional speeds; 3-mode adjustable PTO engagement; front/rear automatic PTO
• Range widths: Quantum V 1,063 mm, Quantum N 1,228 mm, Quantum F 1,382 mm, Quantum CL 1,569 mm
• Referenced tire types: RI 500 / RI 525 / RI 575 / RI 650 depending on model
