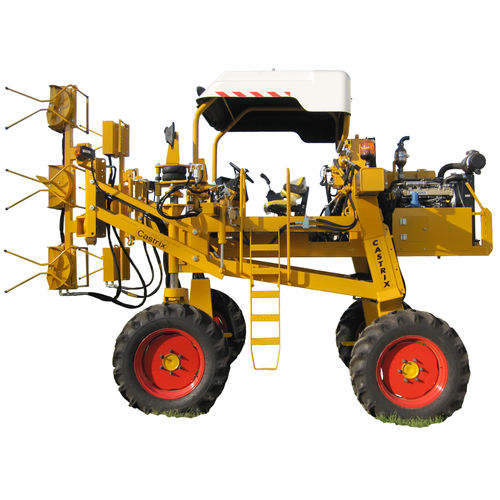

Self-propelled detasseler S4

4-row6-rows

A self propelled machine on 4 driving wheels with hydrostatic traction provided by engines “Poclain” on wheels. The variable carriageway permits the shifting of the wheels up to 60 cm. Can be equipped with different types of detasseling bars: cut by knives or discs, pull by roller. All bars are split 2 + 2 or 3 + 3 or 4 + 4 and allow the mounting of the photocells (electronic eye) for automatic processing. The hourly production is approximately 3ha with cutting bars and about 2ha with roller bars. It is also possible to mount on machine a spray boom for pesticides to crops. ENGINE DEUTZ TD2011L04 57.6 kW or DEUTZ TD 2.9 55.4 kW TRACTION Fully hydrostatic on 4 driving wheels with radial piston hydraulic motors and Twin Lock system. STEERING 2 steering wheels (front) with hydrostatic system and power steering CARRIAGEWAY Hydraulic variable from a minimum of 155 cm to a maximum of 215 cm. HYDRAULIC OIL TANK 140 litres SUSPENSIONS Pneumatic FRAME STRUCTURE 200 x 200 mm, square tubular 200×100 mm or 100 x 100 mm. GROUND CLEARANCE (frame) 160 cm. TYRES DIMENSION - Measure 11.2-24 TT High traction STARTER Electric with battery 12 V PULLING BAR Equipped with rollers for 6 or 8 rows (3 + 3 or 4 + 4) CUTTING BAR Equipped with knives for 6 or 8 rows (3 + 3 or 4 + 4) ROOF Fiberglass roof to protect from the sun CABIN On demand ACCESSORIES Rear seats for eventual manual finishing
