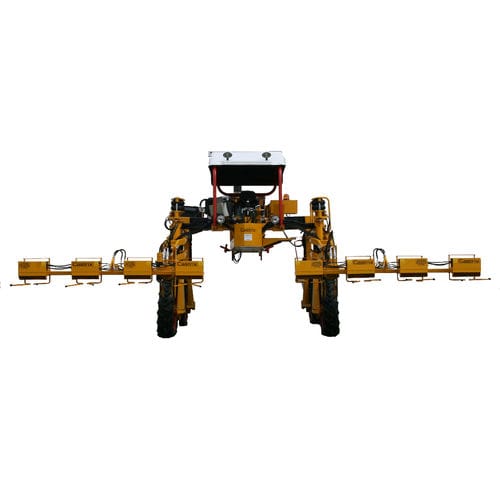

Self-propelled detasseler S5

4-row6-rows

A self propelled machine on 4 driving wheels with hydrostatic traction provided by engines “Poclain” on wheels. The variable carriageway permits the shifting of the wheels up to 100 cm simply acting on a lever. It can be equipped with different types of detasseling bars: cut by knives, pull through discs or rollers. All bars are 3 + 3 or 4 + 4 and allow the mounting of the photocells (electronic eye) for automatic processing. ENGINE DEUTZ TD2011L04 57.6 kW or DEUTZ TD 2.9 55.4 kW TRACTION Fully hydrostatic on 4 driving wheels with radial piston hydraulic motors and Twin Lock system. CARRIAGEWAY Hydraulic variable from a minimum of 200 cm to a maximum of 310 cm. STEERING 2 steering wheels (front) with hydrostatic system and power steering (4 steering wheels on demand) HYDRAULIC OIL TANK 140 litres SUSPENSIONS Pneumatic FRAME STRUCTURE 200 x 200 mm, square tubular 200×100 mm or 100 x 100 mm. GROUND CLEARANCE 170 cm. TYRES DIMENSION - Measure 11.2-24 TT High traction STARTER Electric with battery 12 V PULLING BAR Equipped with rollers for 6 or 8 rows (3 + 3 or 4 + 4) CUTTING BAR Equipped with knives for 6 or 8 rows (3 + 3 or 4 + 4) ACCESSORIES Rear seats for eventual manual finishing
