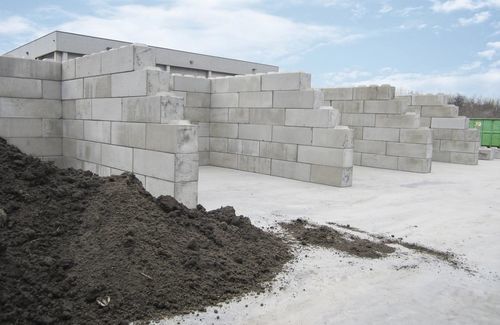

Concrete bunker wall Modulobloc

constructionU-shaped

Overview
Modulobloc concrete stacking blocks are designed for separation and containment of bulk materials and mixed waste. They are suitable for applications such as bulk storage, storage boxes, salt sheds and recycling parks. Blocks are stacked dry without cement or adhesives, enabling fast assembly and reconfiguration.

Applications

• Bulk material storage (aggregates, recycled materials)
• Storage boxes and compartments
• Salt and de-icing material sheds
• Recycling parks and waste separation areas
• Temporary or permanent enclosures, indoor and outdoor

Features

• Module sizes: 60 cm and 80 cm for modular dimensioning
• Concrete classes available: C25/30 (standard, high-quality recycled concrete) and C35/45 (improved, exposure classes XA3/XF4)
• Dry-stacked installation without mortar or glue; blocks placed in bond with studs that fit into the upper block negatives for anchoring
• Flexible configurations: straight walls, L-shapes, U-shapes, crossed walls and non-perpendicular assemblies
• Options for structural reinforcements to increase stability according to project requirements

Associated services
On-request project support: site analysis, construction drawings, static calculations, transport coordination and on-site assembly. Solutions can be adapted to client specifications and existing floor conditions.

Technical specifications

• Module sizes: 60 cm, 80 cm (module-based dimensions)
• Concrete qualities: C25/30 and C35/45 (XA3/XF4)
• Stacking method: dry-stacked, blocks placed in bond with studs/negatives; no mortar or glue required
• Possible configurations: straight, L, U, crossed, non-perpendicular walls
• Structural options: reinforcement systems available per project
• Applications: bulk storage, recycling, storage boxes, salt sheds; suitable for temporary or permanent use
