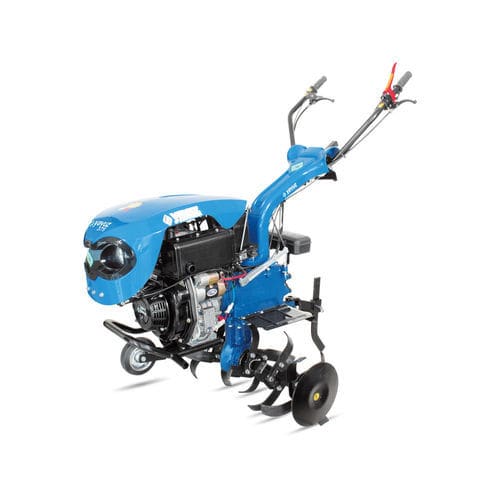

Diesel walk-behind tiller 375 / 178 F - 178 FE

Product
Power tiller Yavuz 375 / 178F - 178FE with 3 forward and 1 reverse gearbox and single-cylinder 4-stroke direct injection diesel engine.

Technical details
Serial No: Yavuz 375 / 178 F - 178 FE
Gear Box: 3 Forward and 1 Reverse Speed
Transmission: Conical and Bevel Gear Transmission
Tiller: Adjustable 60-90cm (with the protective side disks)
Safety System: Emergency Engine Stop System
Power Take-off: Two each Upper Power Take-off and lower Power Take-off
Clutch: Dry Type Conical Brake Lining
Wheels (Optional): 500 x 12
Engine: YAVUZ 178 F - 178 FE
Engine Type: 4 Stroke with Direct Injection Engine with Single-Cylinder
Starting System: Rope / Recoil / Electrical Start
Cylinder Volume: 400 cm3
Power and Rotation: 7HP / 3600 rpm
Effective Torque: 32.8 @ 1800 rpm
Engine oil capacity: 1.1 lt
Fuel tank capacity: 3.5 lt
Fuel Type: Diesel
Air Filter: Oil-bath type
Cooling System: Air pressured
Weight: 110 ±

Key features

• Serial No: Yavuz 375 / 178 F - 178 FE
• 3 forward and 1 reverse gearbox for maneuverability
• Conical and bevel gear transmission
• Adjustable tiller width 60–90 cm with protective side disks
• Emergency engine stop safety system
• Upper and lower power take-offs for mounting implements
• Dry type conical clutch
• Optional 500 x 12 wheels
• Single-cylinder 4-stroke direct injection diesel engine (YAVUZ 178 F - 178 FE)
• Multiple starting options: rope, recoil or electric
• 400 cm3 displacement, 7 HP at 3600 rpm
• Effective torque 32.8 @ 1800 rpm
• Engine oil 1.1 lt, fuel tank 3.5 lt
• Oil-bath air filter and air-pressured cooling
• Weight: 110 ±

Applications

• Soil tillage and seedbed preparation on small to medium plots
• Horticulture, orchards and vegetable beds
• Driving mounted implements via upper/lower PTO

Options and remarks

• Optional wheels: 500 x 12
• Adjustable tiller (60–90 cm) with protective side disks
• Choose starting system according to operational needs: rope, recoil or electric
