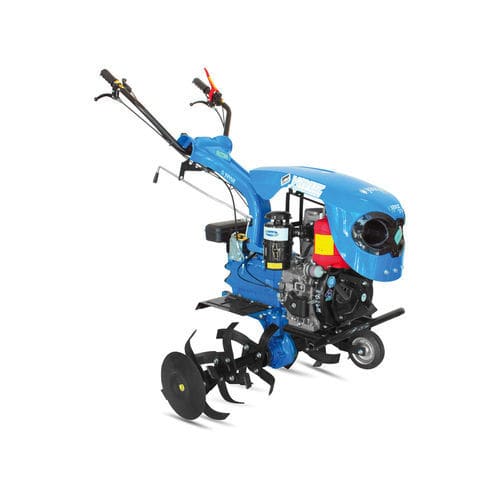

Diesel walk-behind tiller 300 ANTOR AD 320

Product
3 FORWARD and 1 REVERSE SPEED Yavuz 300 ANTOR AD 320

Series
DIESEL SERIES 375

Technical table
Serial No : Yavuz 300 AD 320
Transmission and Diff : 3 Forward and 1 Reverse Speed
Conical and Bevel Gear Transmission
Tiller / Working With : Adjustable 60-90cm (with the protective side disks)
Safety Device : Emergency Engine Stop System
Power Take off : Two each Upper Power Take-off and lower Power Take-off
Dry Type Conical Brake Lining
Wheels {Optional} : Optional (500x12)
Engine : ANTOR AD 320
Engine Type : 4 Stroke with Direct Injection
Engine with Single-Cylinder
Starting Type : Rope / Recoil
Cylinder Volume (cm3) : 315 cm3
Rated Power : 7 HP / 3600 rpm d/dk
Rated Torque : 13.8 & 2800 (N Power)
Engine oil capacity (ltr) : 1.2 lt
Fuel tank capacity (ltr) : 5 lt
Fuel Type : Diesel
Air Filter : Oil-bath type
Cooling System : Air pressured
Weight : 100 ±

Caractéristiques / spécifications techniques

• Serial No: Yavuz 300 AD 320
• Transmission and Differential: 3 Forward and 1 Reverse Speed; Conical and Bevel Gear Transmission
• Tiller / Working Width: Adjustable 60-90 cm (with protective side disks)
• Safety Device: Emergency Engine Stop System
• Power Take-off: Two upper and two lower Power Take-off (two each Upper Power Take-off and lower Power Take-off)
• Brake: Dry Type Conical Brake Lining
• Optional Wheels: 500x12
• Engine Model: ANTOR AD 320
• Engine Type: 4-stroke, direct injection, single-cylinder
• Starting Type: Rope / Recoil
• Cylinder Volume: 315 cm3
• Rated Power: 7 HP @ 3600 rpm
• Rated Torque: 13.8 & 2800 (N Power)
• Engine Oil Capacity: 1.2 lt
• Fuel Tank Capacity: 5 lt
• Fuel Type: Diesel
• Air Filter: Oil-bath type
• Cooling System: Air pressured
• Weight: 100 ±
