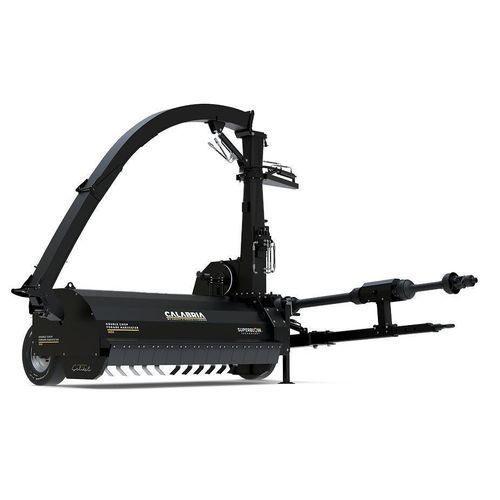

Towed forage harvester Calabria 1800

Overview
The Calabria forage harvester is a double-chop silage machine engineered to pick up withered grass from the ground, perform extra-fine chopping and deliver high blowing capacity for rapid filling and consistent forage quality. It combines a patented rotor and a patented flywheel/blade layout to reduce losses and optimize chopping performance.

Key features

• Patented rotor system with specially shaped blades that pre-chop material and feed it to the flywheel in an optimized flow.
• Patented flywheel with widened blowing pallets and a dedicated blade arrangement for finer chopping and higher blowing capacity.
• Automatic knife sharpening integrated with the chopper flywheel; cast body design reduces vibration and provides uniform sharpening across the blade surface.
• Extra-fine chopping capability for withered grass, with adjustable cutting length to meet feed specifications.
• Row-independent design compatible with multiple tractor mounting positions (front, rear, side).
• PTO / transmission options: typical PTO 540 rpm; tractor transmission options include 540, 750 and 1000 rpm.
• Adjustable cutting height and cut length to adapt to field and feed requirements.

Applications

• Harvesting and fine-chopping withered or standing grass for silage production (double-chop configuration).
• Situations requiring high blowing capacity, uniform chop size and flexible tractor mounting options.

Versions / models

• Calabria 1500
  • Power requirement: 45 - 60 kW
  • Working width: 1500 mm
  • Rotor blades: 36 units
  • Cutting disc blades: 10 units
  • Throwing blades: 10 units
  • Tire size: 165X70XR13
  • Rotor speed: 2250 rpm
  • Cutting disc speed: 1620 rpm
  • Weight: 925 kg
  • PTO speed: 540 rpm
  • Nominal working capacity: 20 tons/hour
  • Working dimensions (W×H×L): 2535 × 3700 × 2400 mm
  • Transport dimensions (W×H×L): 2540 × 2355 × 3170 mm
  • Cutting size (adjustable): 20 - 70 mm
  • Cutting height (adjustable): 50 - 150 mm
• Calabria 1800
  • Power requirement: 60 - 80 kW
  • Working width: 1800 mm
  • Rotor blades: 48 units
  • Cutting disc blades: 10 units
  • Throwing blades: 10 units
  • Tire size: 165X70XR13
  • Rotor speed: 2250 rpm
  • Cutting disc speed: 1620 rpm
  • Weight: 975 kg
  • PTO speed: 540 rpm
  • Nominal working capacity: 25 tons/hour
  • Working dimensions (W×H×L): 2835 × 3700 × 2400 mm
  • Transport dimensions (W×H×L): 2840 × 2355 × 3170 mm
  • Cutting size (adjustable): 20 - 70 mm
  • Cutting height (adjustable): 50 - 150 mm
• Calabria 2100
  • Power requirement: 80 - 100 kW
  • Working width: 2100 mm
  • Rotor blades: 56 units
  • Cutting disc blades: 10 units
  • Throwing blades: 10 units
  • Tire size: 165X70XR13
  • Rotor speed: 2250 rpm
  • Cutting disc speed: 1620 rpm
  • Weight: 1045 kg
  • PTO speed: 540 rpm
  • Nominal working capacity: 30 tons/hour
  • Working dimensions (W×H×L): 3135 × 3700 × 2400 mm
  • Transport dimensions (W×H×L): 3140 × 2355 × 3170 mm
  • Cutting size (adjustable): 20 - 70 mm
  • Cutting height (adjustable): 50 - 150 mm

Technical specifications

• Patented rotor and flywheel blade geometry designed for extra-fine chopping and minimized product loss.
• Automatic blade sharpening system mounted on a cast body for vibration-reduced, parallel sharpening.
• Bearings series 20.000 used for rotor, flywheel, shaft and worm for durability in vibrating zones.
• PTO / transmission options: 540, 750 and 1000 rpm depending on configuration.
• Hydraulic options: tractor-dependent and tractor-independent systems available.
• Adjustable cut length: 20 - 70 mm; adjustable cutting height: 50 - 150 mm.
• Indicative working capacity: 20–30 tons/hour depending on model and crop conditions.
