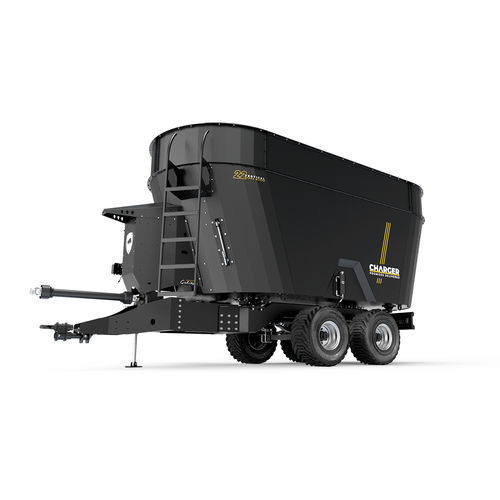

Vertical mixing wagon Charger V25

towedsingle-auger2-auger

Charger is a vertical auger feed mixer for professional livestock farms, available in capacities from 10 m³ to 30 m³. It pairs an S355 steel reinforced chassis with digital weighing, independent hydraulic option and a patented vertical loading bucket to streamline ration preparation.

Overview

• Vertical auger mixing machine designed for homogeneous feed blending and on-farm ration production.
• Reinforced S355 steel chassis on a heavy-duty axle engineered to resist bending and torsion.
• Multiple unloading and loading configurations to adapt to different barn layouts and logistics.

Key features

• Vertical auger system with configurable auger blade arrangements for uniform mixing across ingredients.
• Integrated digital weighing system for precise ration formulation and inventory control.
• Optional independent hydraulic system enabling operation without tractor hydraulic pressure.
• Patented vertical loading bucket (forklift-type principle) for fast, safe transfer of material into the mixing body.
• Two-speed gearbox and proprietary Çelikel transmission solutions to reduce tractor load and improve drivetrain durability.
• Flexible unloading options and conveyor interfaces to suit various farm infrastructures.

Available capacities / model variants

• 10 m³
• 12 m³
• 14 m³
• 16 m³
• 18 m³
• 20 m³
• 22 m³
• 24 m³
• 25 m³
• 30 m³

Technical specifications

• Chassis type:
  • All capacities: TOWED
• Length (overall):
  • 10–14 m³: 5550 mm
  • 16–25 m³: 7510 mm
  • 30 m³: 8340 mm
• Height:
  • 10 m³: 2760 mm
  • 12 m³: 3060 mm
  • 14 m³: 3280 mm
  • 16 m³: 2520 mm
  • 18 m³: 2720 mm
  • 20 m³: 2880 mm
  • 22 m³: 3090 mm
  • 24 m³: 3420 mm
  • 25 m³: 3620 mm
  • 30 m³: 3500 mm
• Width:
  • 10–25 m³: 2280 mm
  • 30 m³: 2510 mm
• PTO speed (tractor):
  • All listed capacities: 540 rpm
• Minimum power requirement:
  • 10 m³: 37 kW
  • 12 m³: 45 kW
  • 14 m³: 45 kW
  • 16 m³: 60 kW
  • 18 m³: 110 hp
  • 20 m³: 120 hp
  • 22 m³: 130 hp
  • 24 m³: 130 hp
  • 25 m³: 140 hp
  • 30 m³: 150 hp
• Empty weight:
  • 10 m³: 3250 kg
  • 12 m³: 4510 kg
  • 14 m³: 4830 kg
  • 16 m³: 6700 kg
  • 18 m³: 6800 kg
  • 20 m³: 6900 kg
  • 22 m³: 7000 kg
  • 24 m³: 7100 kg
  • 25 m³: 7200 kg
  • 30 m³: 8850 kg
• Support/foot system:
  • All capacities: MANUAL
• Auger blade units per capacity:
  • 10 m³: 7 units
  • 12 m³: 8 units
  • 14 m³: 8 units
  • 16 m³: 12 units
  • 18 m³: 12 units
  • 20 m³: 7x2 units
  • 22 m³: 7x2 units
  • 24 m³: 8x2 units
  • 25 m³: 8x2 units
  • 30 m³: 8x2 units
• Number of fixed blades:
  • All capacities: 2 units
• Number of augers:
  • 10 / 12 / 14 m³: 1 unit
  • 16–30 m³: 2 units
• Side sheet thickness:
  • All capacities: 8 mm
• Base sheet thickness:
  • All capacities: 20 mm
• Auger sheet thickness:
  • All capacities: 12 mm
• Auger speed:
  • Most capacities: 33 rpm
  • 30 m³: 28 rpm
