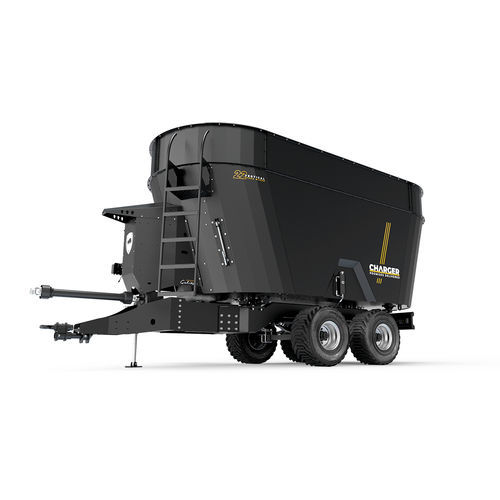

Vertical mixing wagon Charger V24

towedsingle-auger2-auger

Product overview
The Charger® is a vertical screw feed mixer designed for large-scale livestock operations, offered in multiple capacities from 10 m³ to 30 m³. It features a reinforced chassis, precision digital weighing, independent hydraulics and flexible loading/unloading options to optimise ration preparation.

Key features

• Vertical screw (auger) design optimised for homogeneous mixing.
• Reinforced S355 steel chassis, connected at strategic points and mounted on a heavy-duty axle to resist bending and torsion.
• Precision digital weighing system for accurate ration dosing and reduced inventory costs.
• Independent hydraulic system allowing operation of hydraulic functions without tractor oil pressure.
• Patented loading bucket by Çelikel® for safe, vertical transfer of material into the drum (forklift-type principle).
• Powerful gear transmission and two-speed gearbox: selectable ratios to suit workload and reduce tractor strain.
• Flexible discharge options (modular design offers multiple solutions according to facilities and working conditions).
• Conveyor and various ejection/configuration devices depending on model.

Characteristics / technical specifications

• Available capacities:

  • 10 m³
  • 12 m³
  • 14 m³
  • 16 m³
  • 18 m³
  • 20 m³
  • 22 m³
  • 24 m³
  • 25 m³
  • 30 m³
• Chassis type: Trailed
• PTO speed: 540 rpm (all models)
• Support system: Manual (all models)
• Number of fixed blades: 2 pieces (all models)
• Side sheet thickness: 8 mm (all models)
• Bottom sheet thickness: 20 mm (all models)
• Auger shell thickness: 12 mm (all models)
• Specifications by capacity:

  • 10 m³: Length 5550 mm, Height 2760 mm, Width 2280 mm, Empty weight 3250 kg, Minimum required power 37 kW, Number of auger fixed blades 7 pieces, Number of augers 1 piece, Auger speed 33 rpm.
  • 12 m³: Length 5550 mm, Height 3060 mm, Width 2280 mm, Empty weight 4510 kg, Minimum required power 45 kW, Number of auger fixed blades 8 pieces, Number of augers 1 piece, Auger speed 33 rpm.
  • 14 m³: Length 5550 mm, Height 3280 mm, Width 2280 mm, Empty weight 4830 kg, Minimum required power 45 kW, Number of auger fixed blades 8 pieces, Number of augers 1 piece, Auger speed 33 rpm.
  • 16 m³: Length 7510 mm, Height 2520 mm, Width 2280 mm, Empty weight 6700 kg, Minimum required power 60 kW, Number of auger fixed blades 12 pieces, Number of augers 2 pieces, Auger speed 33 rpm.
  • 18 m³: Length 7510 mm, Height 2720 mm, Width 2280 mm, Empty weight 6800 kg, Minimum required power 110 hp, Number of auger fixed blades 12 pieces, Number of augers 2 pieces, Auger speed 33 rpm.
  • 20 m³: Length 7510 mm, Height 2880 mm, Width 2280 mm, Empty weight 6900 kg, Minimum required power 120 hp, Number of auger fixed blades 7x2 pieces, Number of augers 2 pieces, Auger speed 33 rpm.
  • 22 m³: Length 7510 mm, Height 3090 mm, Width 2280 mm, Empty weight 7000 kg, Minimum required power 130 hp, Number of auger fixed blades 7x2 pieces, Number of augers 2 pieces, Auger speed 33 rpm.
  • 24 m³: Length 7510 mm, Height 3420 mm, Width 2280 mm, Empty weight 7100 kg, Minimum required power 130 hp, Number of auger fixed blades 8x2 pieces, Number of augers 2 pieces, Auger speed 33 rpm.
  • 25 m³: Length 7510 mm, Height 3620 mm, Width 2280 mm, Empty weight 7200 kg, Minimum required power 140 hp, Number of auger fixed blades 8x2 pieces, Number of augers 2 pieces, Auger speed 33 rpm.
  • 30 m³: Length 8340 mm, Height 3500 mm, Width 2510 mm, Empty weight 8850 kg, Minimum required power 150 hp, Number of auger fixed blades 8x2 pieces, Number of augers 2 pieces, Auger speed 28 rpm.
