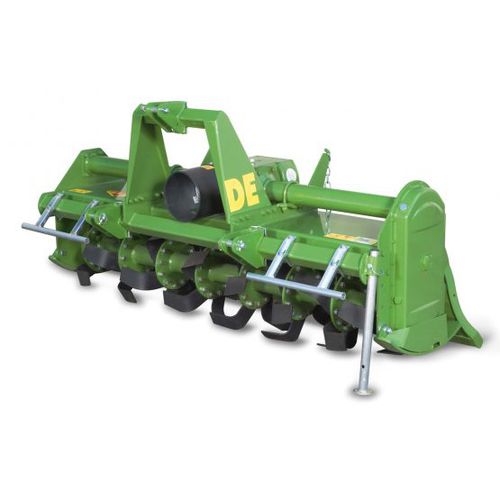

Rotary tiller DE

Drawing on over 60 years of expérience in the design of soil processing machines, we hâve tried to achieve the best compromise between quality, price and design that is in step with the times. Compared to the CE model, which seems lighter, the DE is about 20% more robust in both structure and transmission parts. This allows it to work with tractors that hâve power ranges up to 80 HP. Some particular technical features deserve to be highlighted: • - sturdy boxed structure in thick métal sheets • - The gearbox is completely designed and manufactured by Celli • - exclusive sealing System to protect the rotor support bearings, perfectly sealed even in the most difficult conditions • - rotors and flanges in thick wear résistant Steel • - robust gear side transmission. Technical spécifications and standard equipment • - maximum horsepower: 80 HP (56 KW) • - PTO: 4-speed gearbox for 540 rpm • - gear side transmission • - L-shaped blades: 80><7 mm (6 blades each flange, side blades leaning inwards) • - max. working depth 24 cm • - sideskids • - tailgate adjustment by chain • - foot stand • - clutch drive shaft, S.6 L=1038 mm, tractor side, 1 "3/8 Z=6 • - removable safety devices
