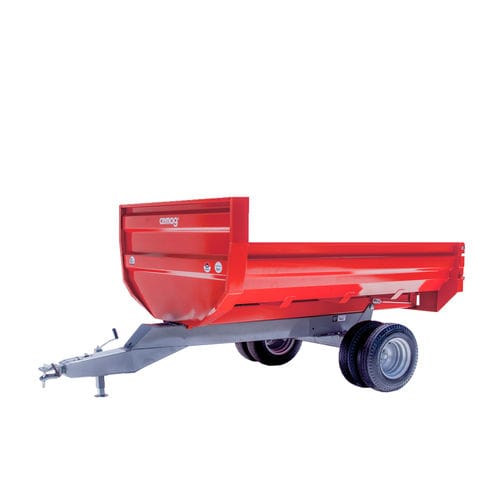

Tipping trailer CBH 5
single-axleforage5 ton

tipping trailer
tipping trailer
Add to favorites
Compare this product


Characteristics

Construction
tipping
Number of axles
single-axle
Application
forage
Payload
5 ton
Empty weight

900 kg
(1,984.2 lb)

Recommended power

60 ch
(60 hp)

Load volume

3 m³
(105.944 ft³)

Loading case lenght

3 m
(9'10" )

Loading case width

1.9 m
(6'02" )

Loading case hight

0.1 m
(0'03" )

Description

FORAGE HYDRAULIC DUMP TRAILER 5T SINGLE AXLE DOUBLE WHEELSET MORE STABILITY SEVERAL MOUNTING POSITIONS, REGULATING THE WEIGHT OVER THE TRACTOR SOLID FRAME INTEGRATED TO THE LIFT REAR DOOR UNLOCKING THROUGH EASILY ADJUSTABLE PULL ROD THICK PLATE ALLOWS THE TRANSPORTATION OF ABRASIVE MATERIALS WHEEL HUBS WITH AUTOMOTIVE STANDARDS FORGED HITCH- MORE RESISTANCE TUBULAR AXLES MORE RESISTANCE TECHNICAL SPECIFICATIONS TOTAL LENGTH:4,30m TOTAL HEIGHT:2,10m EXTERNAL GAUGE LENGTH:2,00m TILTING ANGLE:45° WHEEL:5,5 x 16" 6F RD TIRE:(04) 6,5 x 16" 6L OPTIONALS:spring and brakes, tires, 1 single wheelset axle for a capacity of 3,5ton, 1 tandem axle - excelent stability CATEGORY:General use WHEEL SYSTEM:Tandem

Catalogs

CBH 5
CBH 5
2 Pages
