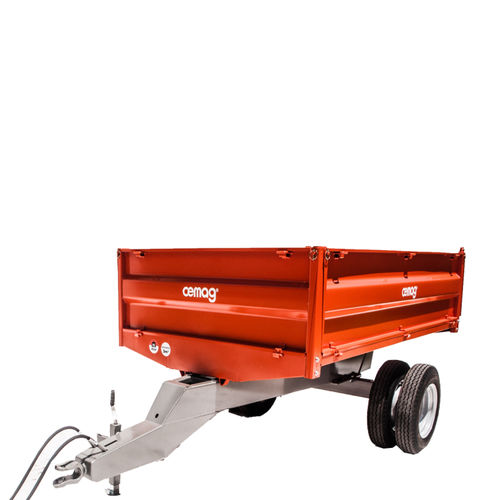

Tipping trailer CBHM 3500single-axleagricultural4 ton
Add to favorites
Compare this product
Characteristics
- Construction
- tipping
- Number of axles
- single-axle
- Application
- agricultural
- Payload
- 4 ton
- Empty weight
850 kg
(1,873.9 lb)- Recommended power
60 ch
(60 hp)- Load volume
3.5 m³
(123.601 ft³)- Loading case lenght
3 m
(9'10" )- Loading case width
1.8 m
(5'10" )- Loading case hight
0.6 m
(1'11" )
Description
SOLID FRAME INTEGRATED TO THE LIFT
FORGED HITCH- MORE RESISTANCE
QUICK COUPLING HOSES
REAR DOOR UNLOCKING THROUGH EASILY ADJUSTABLE PULL ROD
SEVERAL MOUNTING POSITIONS, REGULATING THE WEIGHT OVER THE TRACTOR
WHEEL HUBS WITH AUTOMOTIVE STANDARDS
DOUBLE WHEELSET MORE STABILITY
TUBULAR AXLES MORE RESISTANCE
TOTAL LENGTH:4,30m
TOTAL HEIGHT:1,65m
EXTERNAL GAUGE LENGTH:2,00m
TILTING ANGLE:45°
WHEEL:5,5 x 16" 6F RD
TIRE:(04) 6,5/7 x 16" 6L
OPTIONALS:Spring and brakes, Tires, 1 axle with single wheelset or 1 tandem axle
CATEGORY:General use
WHEEL SYSTEM:Tandem
