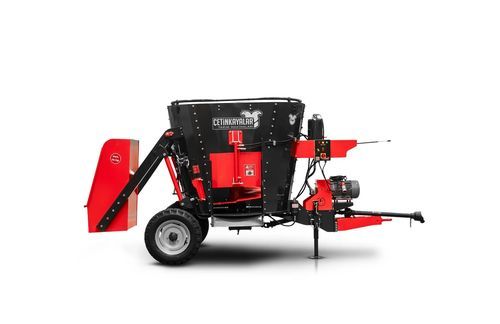

Vertical mixing wagon NCK-08 YK

towedside dischargesingle-auger

Overview
Built on a wheeled chassis, the NCK-08 YK vertical feed mixer processes roughage and concentrates to deliver a homogeneous, balanced ration quickly. Designed for trailed operation, it suits medium to large professional farms requiring automated mixing and controlled discharge.

Full Automation and High Capacity for Professional Farms
The machine provides programmable mixing cycles and automated discharge management. It accepts power from an electric motor or a tractor PTO (shaft), enabling flexible integration into farm workflows.

Technical Specifications

• Capacity: 3 m³
• Power source: Electric motor + tractor PTO (shaft)
• Motor power: 7.5 kW
• Number of blades: 6
• Total length: 4100 mm
• Total width: 1800 mm
• Total height: 2150 mm
• Total weight: 1250 kg

Hydraulic Equipment

• Rear hydraulic loading bucket: Enables fast, effortless loading using powered hydraulic arms
• Hydraulic discharge door: Ensures homogeneous and controlled feed distribution

Key Optional Features

• Digital weighing system: Ensures precise mixing and cost control
• Bagging system: Prepares feed for transport or long-term storage
• Conveyor belt discharge: Enables smooth, uniform distribution into bunks over longer distances
• Dual discharge doors: Right and left side discharge for double-sided feeding alleys

Available Options

• Digital weighing system
• Conveyor belt discharge
• Dual discharge doors
• Bagging system

Table - Technical Details
Technical Specifications: 3 m3
Motor Power: 7.5 kW
Number of Blades: 6
Total Length: 4100 mm
Total Width: 1800 mm
Total Height: 2150 mm
Total Weight: 1250 kg

Technical characteristics

• Capacity: 3 m³
• Power source: Electric motor + tractor PTO (shaft)
• Motor power: 7.5 kW
• Number of blades: 6
• Total length: 4100 mm
• Total width: 1800 mm
• Total height: 2150 mm
• Total weight: 1250 kg
• Rear hydraulic loading bucket: Enables fast and effortless loading with powered hydraulic arms
• Hydraulic discharge door: Provides homogeneous and controlled feed distribution
• Optional - Digital weighing system: Ensures precise mixing and effective cost control
• Optional - Bagging system: Prepares feed for transport or long-term storage
• Optional - Conveyor belt discharge: Allows smooth and uniform feed distribution into bunks
• Optional - Dual discharge doors: Right and left side discharge for double-sided feeding alleys
