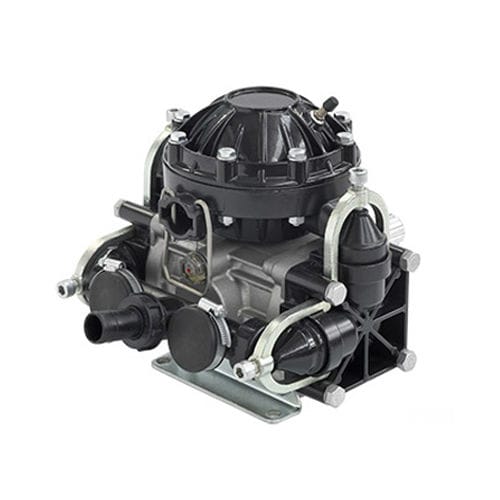

Pulverisation pump P series
diaphragmPTO-driven

pulverisation pump
pulverisation pump
pulverisation pump
pulverisation pump
pulverisation pump
pulverisation pump
Add to favorites
Compare this product


Characteristics

Application
pulverisation
Other characteristics
diaphragm, PTO-driven
Flow

Min.: 23.9 l/min
(6.31371 us gal/min)

Max.: 43.5 l/min
(11.49148 us gal/min)

Pressure

Min.: 0 bar
(0 psi)

Max.: 30 bar
(435.11 psi)

Power

Min.: 0.2 kW
(0.3 hp)

Max.: 2.3 kW
(3.1 hp)

Description

Low pressure diaphragm pumps Configuration: 3 diaphragms in Viton on P 36/10 and Desmopan® on P 36/15 (Viton available on request). Parts in contact with spray liquid: polypropylene and AISI 316-L stainless steel on P 36/10, polyamide and stainless steel on P 36/15. On request: regulation valve. Medium pressure diaphragm pumps Configuration: 3 diaphragms in Viton. Parts in contact with spray liquid: polypropylene. AISI 316-L stainless steel. AISI 304 stainless steel screws. Low pressure diaphragm pumps Configuration: 2 diaphragms in NBR (Desmopan® and Viton available on request). Parts in contact with spray liquid: plasticized aluminium. Standard: pressure accumulator. On request: safety valve and PTO protection Uses For spraying and pest control in gardens, greenhouses, lawns and distribution of water soluble detergents and paints.
