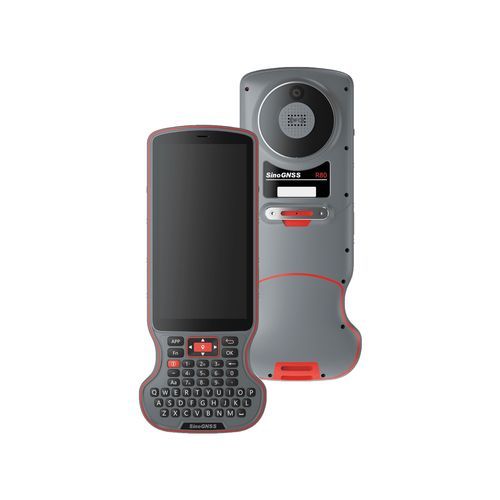

Light data-logger R80

IP67battery-poweredUSB

Introduction
R80 is a GNSS data controller with integrated smartphone functionality running Android 12.0. Powered by a MediaTek octa-core processor and 4 GB RAM, the R80 is designed for field surveying and geospatial data collection, offering fast multitasking and quick access to large files such as CAD drawings.

Key Features

• Android 12.0 operating system
• 6-inch capacitive touch display, 720×1440 resolution, 500 nits (glove and stylus supported)
• MediaTek 8-core processor
• 4 GB RAM + 64 GB ROM (expandable via TF)
• 9000 mAh Li-Polymer battery; supports QC and PD fast charging
• White backlight keyboard with full QWERTY and numeric pad; 2 side data-collection buttons; 8 programmable buttons
• Connectivity: 4G, Bluetooth 5.1, Wi‑Fi dual-band (2.4G + 5G), NFC
• Rugged: IP67 waterproof/dustproof; survives 1.5 m drop onto concrete

Product Parameters — Physical
Size: 242 mm × 87.6 mm × 24 mm
Weight: 488 g (with battery)
Operating temperature: -25 °C to +60 °C
Storage temperature: -40 °C to +70 °C (excluding battery)
Ingress protection: IP67
Shock resistance: Survive 1.5 m drop onto concrete
Processor: MediaTek 8-core
Keypad: White backlight full QWERTY, 10-key numeric pad, directional keys, 8 programmable keys, 2 side data buttons
Battery: 9000 mAh Li-Polymer, >16 hours typical runtime
Charging: QC & PD fast-charge support (full charge in ~5 hours with compatible charger)
Camera: 13 MP
ROM: 64 GB
RAM: 4 GB
Card slots: 1 SIM + 1 TF (up to 512 GB)
LED: Tri-color charge indicator (red charging, green full); supports charge indication when powered off
Display: 6-inch capacitive touch; 720×1440; 500 nits

Product Parameters — Communications
Wi‑Fi: 802.11 a/b/g/n/ac, 2.4G + 5G dual band, fast roaming support
Bluetooth: BT5.1 downward compatible
USB Type-C: OTG support; ESD (Contact ±8 kV, Air ±15 kV); EOS (VBUS ±500 V, VBAT ±300 V); OVP (10.5 V, DC withstand surge >24 V)
NFC: 13.56 MHz, readable range 20–50 mm; supports ISO14443A/14443B/15693
4G bands: GSM B2/B3/B5/B8; WCDMA B1/B2/B4/B5/B8; TDD-LTE B34/B38/B39/B40/B41; FDD-LTE B1/B2/B3/B4/B5/B7/B8/B12/B17/B19/B20/B25/B28A/B28B
Included accessories (typical): QC charger x1, USB cable x1, hand strap x1, battery x1, quick start guide x1

Product Parameters — Sensors
Acceleration sensor: 3-axis
Gyroscope: Yes
Light sensor: Yes
NFC: Yes
Electronic compass & GNSS: Electronic compass; GPS/BeiDou/Galileo/GLONASS/QZSS/AGPS supported (Target SNR ≥ 39 dB at -130 dBm): Yes

Technical Specifications

• OS: Android 12.0
• CPU: MediaTek 8-core
• Memory: 4 GB RAM / 64 GB ROM
• Display: 6-inch capacitive, 720×1440, 500 nits
• Battery: 9000 mAh Li-Polymer, >16 h runtime; QC & PD fast charge
• Camera: 13 MP
• Connectivity: Wi‑Fi dual-band, BT5.1, 4G multi-band, NFC, USB-C (OTG)
• Durability: IP67, 1.5 m drop resistant
• Dimensions & weight: 242 × 87.6 × 24 mm; 488 g (with battery)
• Expansion: 1 SIM + 1 TF (up to 512 GB)
