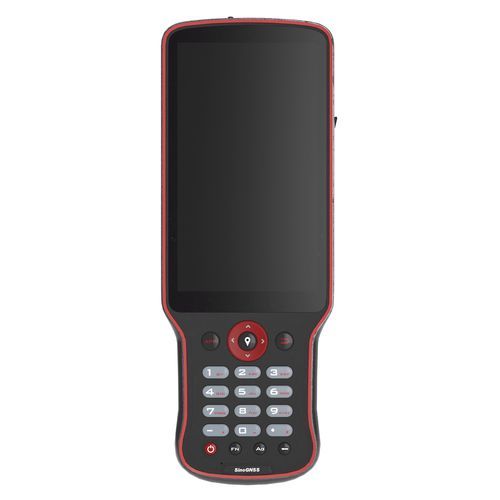

Light data-logger R50

ruggedIP67battery-powered

Introduction
R50, running Android 12, is an ergonomic, rugged data collector designed for field surveying and industrial data capture. It delivers reliable operation in harsh environments with IP67 protection and 1.5 m drop survival.

Key features

• Android 12.0 operating system
• 5.5-inch sunlight-readable display, 720×1280 resolution, 500 nits
• Qualcomm processor
• 4 GB RAM + 64 GB storage
• 7000 mAh built-in battery with QC3.0 quick charge
• 4G, dual-band Wi‑Fi (2.4/5 GHz), Bluetooth 5.0, NFC
• IP67 waterproof and dustproof, 1.5 m drop survival

Product Parameters — Physical
Size: 229×85×20 mm
Weight: ≤390 g
Operating temperature: -20 °C to +65 °C
Storage temperature: -40 °C to +70 °C
Ingress protection: IP67; drop survival: 1.5 m
Battery: 7000 mAh, built-in (non-removable)
Charging: QC3.0 quick charge

Product Parameters — Performance
Operating system: Android 12
CPU: Qualcomm
Memory: 4 GB RAM + 64 GB storage
Display: 5.5-inch high-brightness color screen, 500 nits, sunlight-readable
Resolution: 720×1280
Touch: GFF, supports glove use and limited water on surface
Rear camera: 13 MP with autofocus
Keypad: 9-key numeric keypad

Product Parameters — Communication
SIM: 4G support
Wi‑Fi: Dual-band IEEE 802.11 a/b/g/n/ac (2.4/5 GHz)
Bluetooth: Dual-mode BT5.0
USB: USB Type‑C
NFC: Supported
Supported networks: GSM B2/B3/B5/B8; WCDMA B1/B2/B4/B5/B8; LTE-TDD B38/B39/B40/B41; LTE-FDD B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B20/B25/B26/B28

Technical specifications

• Model: R50
• OS: Android 12
• CPU: Qualcomm
• Memory: 4 GB RAM + 64 GB storage
• Display: 5.5" sunlight-readable, 720×1280, 500 nits
• Camera: 13 MP rear with autofocus
• Battery: 7000 mAh built-in, QC3.0 quick charge
• Ruggedness: IP67, 1.5 m drop survival, anti-static
• Connectivity: 4G, dual-band Wi‑Fi, BT5.0, NFC, USB Type‑C
• Operating temp: -20 °C to +65 °C; Storage temp: -40 °C to +70 °C
• Dimensions: 229×85×20 mm; Weight: ≤390 g
