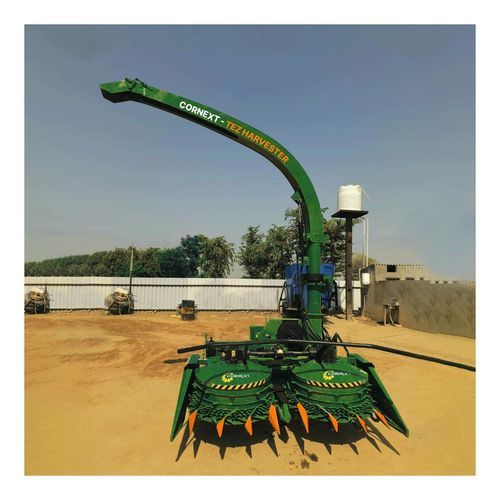

Towed forage harvester TEZ CH1400

pull-typecorn

Product Description
The Cornext Tez CH1400 is a 4-row maize silage harvester engineered for high-speed, high-volume silage production. Designed for tractors of 75 HP and above, it harvests four rows simultaneously to increase daily throughput while maintaining forage quality. Built for India’s demanding field conditions, the CH1400 combines a chopping system with a tractor-compatible hydraulic setup and a multi-speed gearbox for adaptable operation.

Key Features

• Four-row harvesting: harvests four maize rows per pass to reduce cycles and increase field productivity.
• High-capacity output: up to 12 metric tonnes/hour depending on crop and moisture.
• Cutting & chopping system: 12 high-performance blades on a stainless steel flywheel disc for uniform chopping suitable for silage.
• Dual feeding drums: two heavy-duty feeding drums with guides and conveyor for smooth, jam-free intake of dense green fodder.

Performance-Optimized Design

• Multi-speed gearbox: adapts to varying crop densities and terrain for consistent output.
• Tractor-compatible hydraulics: designed to use the tractor hydraulic system to simplify power and maintenance needs.
• PTO-driven: operates from a 540 RPM PTO, optimized for tractors of 75 HP and above.
• Compact footprint: dimensions 1860 mm (L) x 2300 mm (W) x 3010 mm (H); dry weight referenced at approx. 1600–1650 kg (see specifications).

Built for Endurance and Scale
Suitable for large-scale dairies, custom harvesting services and silage entrepreneurs, the Tez CH1400 increases field throughput, reduces turnaround time and expands silage availability. The machine is supplied with a 3-month warranty and manufacturer post-sales support.

Table - Parameters
Output: 12 MT/hr
Working Width: 2300 mm
Working Rows: 4 rows
Recommended power source: Tractor PTO (75 HP min.)
Kerb Weight (Dry): 1,650 kg

Technical specifications

• Model: TEZ CH1400
• Output (capacity): 12 MT/hr
• Working width: 2300 mm
• Working rows: 4 rows
• Recommended tractor power: 75 HP minimum (PTO-driven)
• PTO input: 540 RPM
• Cutting & chopping: 12 high-performance blades on a stainless steel flywheel disc
• Feeding system: dual feeding drums with guides and conveyor for jam-free intake
• Gearbox: multi-speed gearbox for variable crop densities and terrains
• Dimensions: 1860 mm (L) x 2300 mm (W) x 3010 mm (H)
• Weight: Kerb Weight (Dry) listed as 1,650 kg; descriptive text also references approx. 1,600 kg
• Warranty: 3 months
