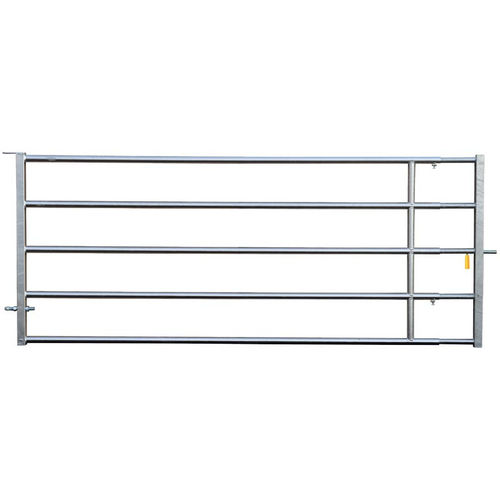

Livestock gate 1121422

stablesteelextendable

Robust and multi-purpose. The single latch rail gate can be converted into a double latch version at any time. Latch threaded in the rails of the front section of the barrier. Safe and without risk of snagging collars. Characteristics: - Hot-dip galvanised after assembly, - 50 x 50 mm thickness 2 mm, front and rear uprights, Rear section: - 5 diam. 42.4 mm cross rails with locks on two rails through cage bolts and nuts, - Ø 42.4 mm spacers with round notches, - Rapid fastening and adjustment thanks to a flat bracket on the top and a threaded eye bolt in a sleeve on the lower part. Front section: - 5 diam. 34 mm cross rails, Available in various versions: - panel with two fastening flat brackets to screw to the 94.8 cm centre distance, - 1 Ø 20 mm "Easylock" automatic lock, guided in a rail, - 2 Ø 20 mm "Easylock" locks, guided in two rails, - drinker/column opening. - drinker/column opening. Fastening flat bracket stamped on the top section. Locks on two rails with a cage bolt and nut. Assembly of Ø 42 mm spacers with round notches. Top section of our front ends closed by a metal mounting plate. Numerous mounting accessories suitable for all arrangements. These field gates and panels can also be used to stable heifers under six months old. Factory-fitted with one "Easylock" latch to assemble in one of the rails on the front section of the barrier, pre-cut to receive it.
