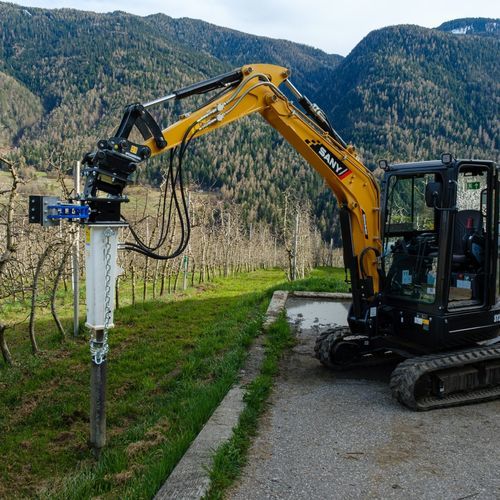

Hydraulic post driver

for tree stacking

Description
The pile‑driving clamp features a modular design that allows conversion from a basic hammer accessory into a complete pile‑driving attachment. Custom fabricated mounting enables adaptation to each hydraulic hammer model, reducing customer installation costs.

Modular solutions and applications
Modular solutions for pile driving and hammer accessories designed to transform a hammer accessory into a full pile‑driving unit, adaptable to different site requirements and hammer types.

Available accessories

• Side tilt device: assists the operator to drill plumb by keeping lateral direction aligned.
• Level sensor: provides a visual signal when the hammer is perfectly plumb for the bucket movement.
• Interlocking tip: tip secured with chains and inserted into the original hollow tip of the hammer; dimensions customizable to client specifications.
• Direct‑attachment tip: replaces the demolition tip to reduce impact power loss; heat‑treated to drill in hard ground conditions.
• Hydraulic hammer: various hammer sizes available, compact design with high impact energy, selected for pile‑driving use.

Variants and sizes
The clamp is available in two operating sizes: 2.5–5 t and 5–9 t. A correctly sized hydraulic hammer can be supplied to match the excavator and optimize performance.

Characteristics / technical specifications

• Modular design enabling multiple configurations (from hammer accessory to complete pile‑driving unit).
• Customizable mounting adapted to each hammer via dedicated fabrication.
• Integrable accessories: side tilt device, level sensor, interlocking tip, direct‑attachment tip, hydraulic hammer.
• Interlocking tip: customizable dimensions; secured with chains; inserted into the original hollow tip.
• Direct‑attachment tip: replaces demolition tip, reduces power loss on impact; heat treatment for hard ground.
• Available in two operating size ranges: 2.5–5 t and 5–9 t.
• Option to supply a hydraulic hammer of appropriate size for the excavator to optimize performance.
