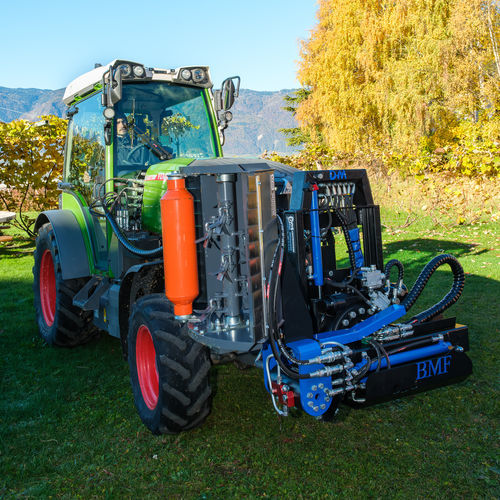

Multifunction tool carrier arm BMF

cultivatingmulchingweeder

Presentation
Our universal tool carrier frame is designed to provide a multi-purpose solution for farms and related operators. Engineered and tested to allow easy and precise work even on the most uneven terrain. Constructed with technologies that enable precise movement of heavy implements and the strength to handle demanding tasks while keeping a compact footprint for working in narrow rows.

Main functions

• Universal multi-purpose solution for tractors and other vehicles.
• Precise movement even with heavy implements.
• Compact design for working in narrow rows.
• BMF-R version with rotation also to the left to reduce time and maneuvers.
• Central hydraulic rotor (BMF-R) providing continuous rotation to prevent hydraulic hose twisting.

Operational features and customization options

• Implement coupling system allowing rapid and easy tool changes.
• Option to supply the frame with a universal mounting plate for installation on vehicles without a three-point hitch.
• 4 double-acting hydraulic movements (plus one optional).
• Continuous supply and free return for implement operation.
• Customization with solenoid valves for vehicles lacking required hydraulic connections.
• Possible integration of radiator group and tank with pump driven by the tractor PTO for machines with insufficient oil flow.
• Optional joystick-controlled valve system to make the frame independent from the tractor's hydraulic capabilities.

Models and technical data (summary)
BMF
Width (with arms horizontal and without implements): 120 cm
Maximum reach: 80 cm
Arm rotation angle: 135°
Weight (without implements): 290 kg
Three-point hitch: CAT 1-2
Mounting plate: UNI 15432 F3

BMF-R
Width (with arms horizontal and without implements): 120 cm
Maximum reach: 80 cm
Arm rotation: continuous
Weight (without implements): 320 kg
Three-point hitch: CAT 1-2
Mounting plate: UNI 15432 F3

Possible implements

• Mower: available in 60 or 80 cm width; required flow: 30 l/min.
• Windrow brush: available with nylon bristles or industrial version; required flow: 12 l/min.
• Mechanical weeder: long-finger model; required flow: 30 l/min.
• Rotary harrow: available with long or short tines; required flow: 20 l/min.
• Auger: available in 250 mm diameter; other diameters customizable; required flow: 15 l/min.
• Pruner: available in lengths from 1 to 3 m; cutting diameter: 2–3 cm; can be equipped with a 1 m hydraulic extension (requires an additional double-acting hydraulic circuit); required flow: 15–20 l/min.
• Ploughing and ridging discs: required flow: 15–20 l/min.

Technical features / specifications

• Operating width (without implements): 120 cm.
• Maximum reach: 80 cm.
• Arm rotation angle: 135° (BMF) / continuous rotation (BMF-R).
• Weight (without implements): approx. 290 kg (BMF) / 320 kg (BMF-R).
• Three-point hitch: CAT 1-2.
• Mounting plate: UNI 15432 F3.
• 4 double-acting hydraulic movements (plus one optional).
• Continuous supply and free return for implement operation.
• Central hydraulic rotor for continuous rotation (BMF-R) to prevent hose twisting.
• Universal mounting plate available for machines without a three-point hitch.
• Customization options: solenoid valves, radiator group and tank with PTO-driven pump, joystick valve system.
• Required hydraulic flows vary depending on the implement (specific indications for each implement in the "Possible implements" block).
