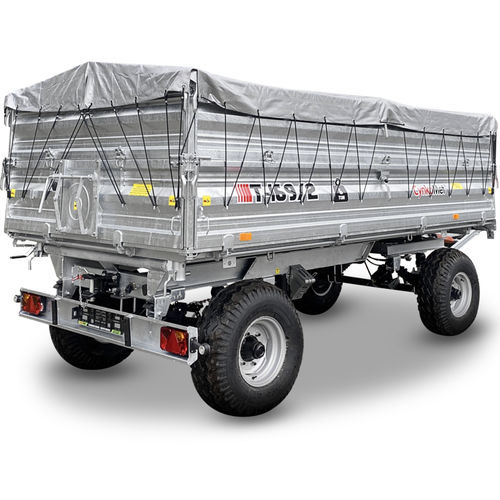

Dump trailer T-169/2

2-axleagricultural6 ton

.Wall height 500 mm with thickness 2.5 mm, hot-galvanized .Central bolt-locking of walls (bottom sideboards) .Exterior ladder and steps inside cargo box – hot-galvanized – with anti-skid steps facilitating access to cargo box .Maintenance support of cargo box, hot-galvanized .“Triangle” drawbar – drawbar homologated according to Reg. 55UN ECE .Welded hitch tension member dia. 40 .Hot-galvanized frame of cargo box .Main stringers of cargo box frame made of metallurgical 160 channel sections .Galvanized cargo box floor made of single riveted and bolted sheet, thickness 4mm .Hot-dip galvanized bottom frame (protection of the structure on the exterior and interior of profiles), stringers of the frame made of metallurgical 160 and 140 channel sections, additionally closed by 5 mm sheet .Parking handbrake with crank .Grain chute, hot-galvanized, with blockade in the rear wall .Regulated spring supporting drawbar .Homologated, hot-galvanized bumper .Side wall links .Rear hitch for second trailer .Tipping installation protected against excessive box inclination by cut-off valve .Lighting installation connector cable with 7PIN 12V plug .12V lighting, homologated, rear bulb lamps, LED perimeter lighting .Hydraulic tipping installation of cargo box made of galvanized steel tubes and flexible hoses .Hydraulic connectors to tractor, type ISO 7241-1 DN 12.5 .Homologated, double-circuit, pneumatic brake system with automatic braking force adjustment, with output for second trailer. .Rear hydraulic, electrical and brake output to the second trailer .New 11.5/80-15.3 wheels .Axles from renowned ADR company, full beam with 80mm square cross-section, 300×90 brake
