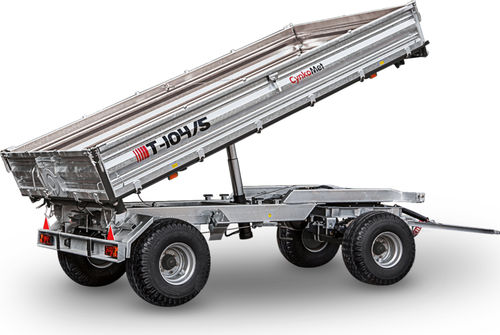

Dump trailer T-104-5

2-axleagricultural9 tons

.Wall height 500 mm with thickness 2.5 mm, hot-galvanized .Central bolt-locking of walls (bottom sideboards) .Exterior ladder and steps inside cargo box – hot-galvanized – with anti-skid steps facilitating access to cargo box .Maintenance support of cargo box, hot-galvanized .“Triangle” drawbar – drawbar homologated according to Reg. 55 UN ECE) .Welded hitch tension member dia. 40 .Hot-galvanized frame of cargo box .Main stringers (with variable cross-section) of cargo box frame made of bent high-strength sheets .Galvanized cargo box floor welded out of two sheets with a thickness of 5 mm, bolted and riveted .Hot-dip galvanized bottom frame (protection of the structure on the exterior and interior of profiles), stringers of the frame made of 200x80x6 and 160x80x6 closed sections .Parking handbrake with crank .Grain chute, hot-galvanized, with blockade in the rear wall .Regulated spring supporting drawbar .Homologated, hot-galvanized bumper .Side wall links .Tipping installation protected against excessive box inclination by cut-off valve .Lighting installation connector cable with 7PIN 12V plug .12V lighting, homologated, rear bulb lamps, LED perimeter lighting .Hydraulic tipping installation of cargo box made of galvanized steel tubes and flexible hoses .Hydraulic connectors to tractor, type ISO 7241-1 DN 12.5 .Homologated, double-circuit, pneumatic brake system with automatic braking force adjustment, with output for second trailer. .Rear hydraulic, electrical and brake output to the second trailer .New 500/50-17 wheels
