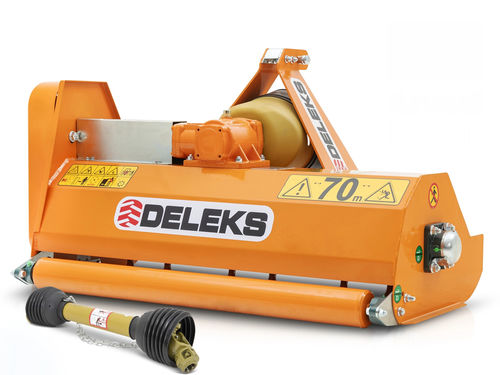

Mounted mulcher APE-120

flail28 hammersPTO-driven

OVERVIEW The APE-120 flail mower has been designed for low-powered tractors e.g Kubota BX-B, Iseki, Yanmar, John Deere 1-2 Series, Pasquali, etc. 16-30Hp, for garden and farm use. Heat forged hammers for grass, thicker vegetation and small twigs. Cutting height can be easily changed via an adjustable roller. Fixed universal three point hitch Cat.1. BENEFITS & FEATURES Frame entirely made with Swedish SSAB steel. Rotor made with ARVEDI's tube, electronically balanced. Hammers attachments HARDOX made. Gearbox P.T.O. 540 r.p.m. Lombarda Ingranaggi Srl with free-wheel (3 Years warranty) The lightweight design allows its use with low-powered tractors, on flat ground or on verges. 330g heat forged hammers to shred vegetation up to 2,0cm thick. Adjustable roller unit. External belt tensioner. Pto Shaft CE included. CHARACTERISTIC - UNITS METRIC Working width - 1200.0 mm Overall width - 1350.0 mm Min / Max cutting height - 20.0 - 35.0 mm Weight - 120.0 kg Overall height - 623.0 mm Tractor Power Range - 16 - 30 Hp 3 point linkage - Cat. 1 (ø 19.0-22.0mm) Hood height - 317.0 mm Spacing between the 2 lower points - 380.0 - 580.0 mm
