Agricultural rotary cutter BUGGY-100C

rear-mountPTO-driven

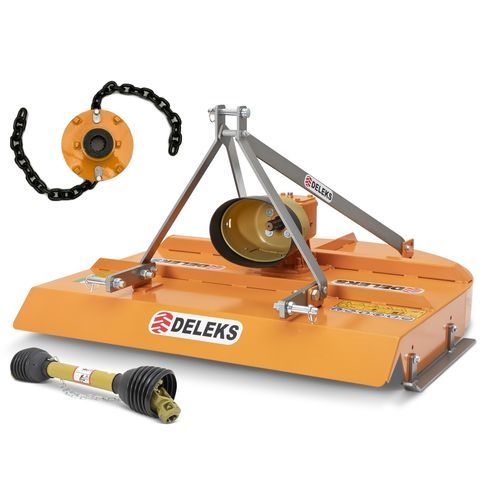

Chained Rotary Cutter, Lawnmower for tractor - DELEKS® BUGGY-100C - Cardan shaft CE. OVERVIEW BUGGY-100C Chained Rotary Cutters are a quick and easy solution for clearing grass, weeds and light brush. BUGGY fits all standard compact tractors 25-75 hp e.g Kubota, Ford, John Deere, etc. Ideal for uncultivated areas with branches and bushes; areas with stones and rough areas. BENEFITS AND FEATURES 2 Chains: tempered steel grade 80 mm. 10X30 Cardan shaft CE. Small footprint that allows cutting even near the edges. Suitable also for reversible usage: by reversing the 3-point attachment and the multiplier, it is possible to mount it frontally. Adjustable slides to adjust the cutting height. Extremely robust frame. CHARACTERISTIC - UNITS METRIC Working width - 970.0 mm Overall width - 1070.0 mm Min / Max cutting height - 10.0 - 60.0 mm Weight - 100.0 kg Overall height - 65.0 mm Tractor Power Range - 25-75 Hp 3 point linkage - Cat. 1 (ø 19.0-22.0mm) Spacing between the 2 lower points - 450.0-720.0 mm Overall length - 1100.0 mm Distance between pto attachment and ground - 340.0 mm Main hood thickness - 3.0 mm Transmission: Drive method - Gear Transmission: Gearbox - Lombarda Ingranaggi Srl (Italy) (3 year warranty)
