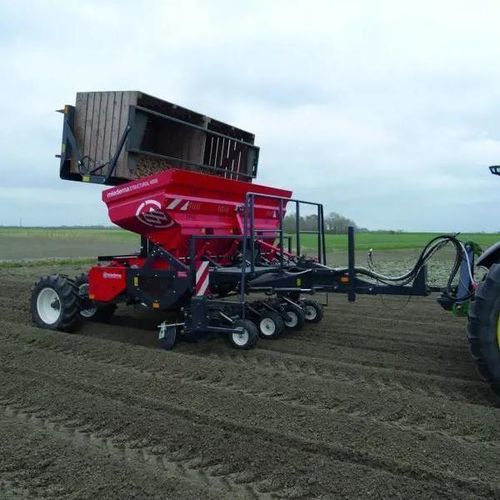

Potato planter Structural 4000 series

automatic4-rowmounted

Speed and accuracy
The Miedema Structural 4000 is a mounted or trailed 4‑row belt planter designed for fast, precise and potato‑friendly planting. It combines high forward speed (up to 11 km/h) with gentle handling of seed potatoes to minimise tuber damage and deliver uniform results.

The heart of a Structural
The Structural belt planting system reduces friction between tubers and provides an open belt bed that separates foreign matter. This design gives each seed potato the space needed according to its size, improving uniformity of the finished crop and easing maintenance and adjustment of the machine.

Precision farming within easy reach
With GPS mapping and integrated control systems the Structural ensures accurate placement: even spacing, correct depth and a single line in the ridge centre. Precision‑Planting functions enable place‑specific planting, independent granulate spreading and fertilisation, and automated control options for reliable, repeatable results.

3 variants based on your needs

Structural 4000 L
Mounted version
Suitable for small to large fields with short headlands
Very manoeuvrable
Hopper capacity: 3 tonnes

Structural 4000 P
Trailed version
Designed for the highest planting capacities
Large hopper capacity: 4 tonnes
Available with box tippler for 2 boxes and many optional configurations

Structural 4000 Smart‑Float
Automatically maintains constant working depth of the integrated soil cultivation system
Combines seedbed preparation, planting and ridging in a single pass to save time and labour

Why choose Miedema Structural 4000

• Original Structural belt planting technology
• High potato friendliness with precise placement
• Top working speeds for high daily capacity

Crops suited

• Potatoes

Technical specifications

• Type: 4‑row belt planter (mounted or trailed)
• Available models: Structural 4000 L (mounted), Structural 4000 P (trailed), Structural 4000 Smart‑Float
• Maximum working speed: up to 11 km/h
• Row spacing: Mounted 75 cm; Trailed 75–91.4 cm (36")
• Hopper capacity [kg]: Mounted 3000; Trailed 4000
• Drive: Hydraulic (mounted and trailed)
• Minimum lifting capacity [kg]: Mounted 9500; Trailed: not applicable
• Minimum tractor power [hp]: Trailed 120
• Optional equipment: Tipping indicator and automatic tipper, Fill‑Control, Hill‑Master, Ferti‑Flow fertiliser spreader, radial tyres, steerable rear wheels (optional on trailed), box tippler (trailed), LED work lamps in belt bed, sprayer set and tank, manual tramline control, Row‑Stop, granulate spreader, ridging ploughs, ridging hood, MR‑Control, HMI GPS Planting‑Comfort/Control
