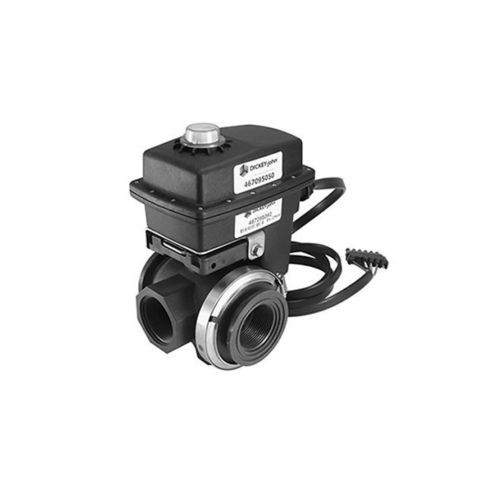

Control valve 46709-5010

irrigationsealed2-way

Product Overview
Servo Control Valves (valve actuators) designed to drive liquid and NH3 control valves on agricultural equipment. Provides rapid actuation (close-to-open in 1.5 seconds) and environmental sealing for reliable field operation. Compatible with a range of valve sizes commonly used on applicators and spreaders.

Key Features

• Close-to-open time: 1.5 seconds
• Environmentally sealed for field use
• Drives 3/8 to 1 in. liquid and NH3 control valves
• Information supplied to help select the correct flow control valve for equipment

Flow Rate Calculation
To calculate liquid flow rates (gpm) to select the correct flow control valve for your application, use the formula below:

Width x speed x application rate (gpa) x 0.00202 = gpm

Example
60 ft. x 15 mph x 20 gpa x 0.00202 = 36.36 gpm

Technical Specifications

• Model: Valve Actuators
• SKU: 467095050
• Close-to-open time: 1.5 seconds
• Sealing: Environmentally sealed
• Compatible valve sizes: 3/8 to 1 in. (liquid and NH3 control valves)
• Flow calculation: Width x speed x application rate (gpa) x 0.00202 = gpm
• Example calculation: 60 ft. x 15 mph x 20 gpa x 0.00202 = 36.36 gpm
