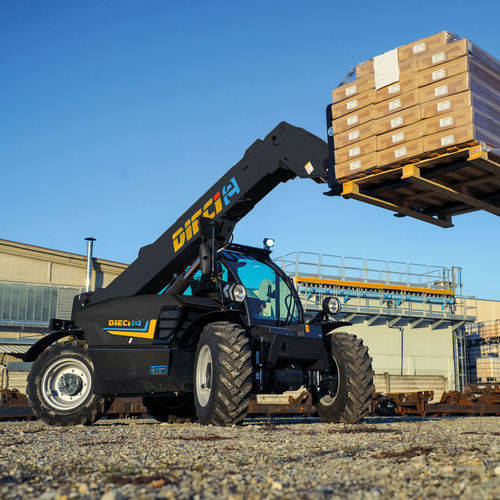

Construction telehandler APOLLO-e 26.6

Description
APOLLO-e is the first flexible electric telehandler designed for construction sites and urban worksites. Combining zero local emissions and low acoustic footprint, the machine uses an innovative e-modular power pack that enables on-site expansion of battery capacity and rapid adaptation to operational needs. APOLLO-e preserves the performance levels expected from conventional telehandlers while offering the benefits of full electric operation. The telehandler supports a wide range of attachments including winches and work platforms.

Benefits

• Electrical transmission: single-speed electric transmission — precise, steady and quiet; minimal energy loss; traction comparable to conventional drivetrains.
• E-Modular Power Pack: modular battery system that allows flexible configuration and aftermarket expansion; option to double energy capacity for extended autonomy.
• Charging system: three charging sockets connected to the on-board charger (Mode 3 Type 2, 220V industrial socket, 380–400V industrial socket); accessible locations for convenient charging; prewired for external rapid chargers.
• Intuitive navigation: 7" high-definition display with simple 4-button operation; anti-tip indicators; anti-fingerprint and scratch-resistant mineral glass for excellent visibility.
• High comfort: ergonomically arranged controls, adjustable steering column, storage compartments, radio, sun screen, ergonomic seat, cabin soundproofing and air conditioning for improved operator comfort.
• Optimized maintenance: transverse battery arrangement and new engine compartment opening for fast, safe access to components and simplified servicing.
• Versatile and flexible: compatible with forks, buckets, lifting hooks, jibs with winches, grippers, material baskets, mixers, concrete ladles, sweepers, salt spreaders and snowplow blades; automatic equipment recognition configures vehicle settings when attachments are fitted.
• DIECI Telematic System (DTS): remote monitoring of operating parameters and performance for maintenance planning, cost control and theft protection via geolocation.

Technical specifications

• Model family: APOLLO-e
• Model variant: 26.6
• Maximum capacity: 2600 kg
• Maximum lifting height: 5.73 m
• Maximum height on wheels: 5.73 m
• Pull-out force: 5510 daN
• Towing force: 4100 daN
• Maximum speed: 24 km/h
• Unladen weight: 5100 kg
• Rated power traction motor: 19 kW (S2 60')
• Rated power hydraulic motor: 22 kW (S3 15%)
• Hydraulic pump capacity: 62 l/min
• Maximum operating pressure: 23 MPa
• Transmission type: Single-speed electric
• Standard tires: 12.0/75-18"
• Dimensions: ground clearance 300 mm; maximum length 4100 mm; cab height 1980 mm; tire width 1860 mm; turning radius 3400 mm
• Battery system: standard Lithium Ion; nominal voltage 90 V; standard capacity 230 Ah (21 kWh)
• On-board charger compatibility: 110V–220V–400V — IEC 61851 mode 2 and 3 with Type 2 socket
• On-board charger power (220V): 3.3 kW
• On-board charger power (400V): 6.6 kW
• Optional external charger power: 18 kW
• Standard battery charging time (220V): 5.3 h
• Standard battery charging time (400V): 2.7 h
• Standard battery charging time with external charger (400V): 1 h
• Optional battery: Lithium Ion; nominal voltage 90 V; capacity 460 Ah (42 kWh)
• Optional battery charging time (220V): 11 h
• Optional battery charging time (400V): 3.5 h
• Optional battery charging time with external charger (400V): 2 h
