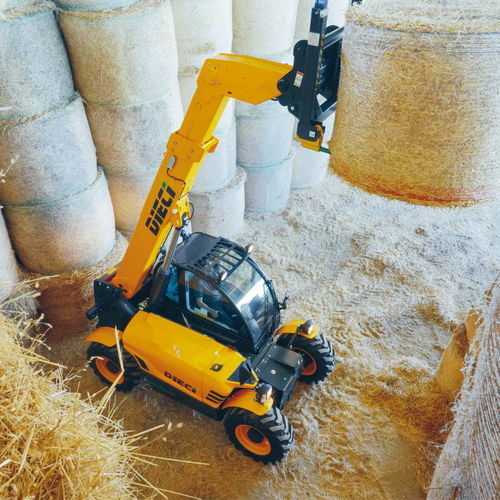

Agricultural telehandler MINI AGRI 26.6

Product overview
Mini Agri is a compact telehandler designed for small-scale agricultural and groundworks where access is limited. It combines a rigid chassis with precise hydrostatic drive and modular attachments to operate in confined spaces while maintaining lifting capacity and operator comfort.

Benefits and main features

• SINGLE-SPEED HYDROSTATIC TRANSMISSION
  • High performance: optimal speed-to-power ratio in varied working conditions.
  • Consistent traction and speed without gear changes.
  • Smooth, precise movements with millimetre control at low speeds.
  • Electronic throttle and inching pedal for controlled motion under load.
  • Improved operator comfort thanks to absence of gear shifts.
• SINGLE CONTROL
  • Direction and boom managed by a single-lever joystick for intuitive operation.
  • All functions integrated into a single control unit with advanced diagnostics.
  • Hydraulic distributors enable more simultaneous movements and faster response to inputs.
• SMALL AND AGILE
  • Designed for manoeuvring in tight spaces with precise handling.
  • Three steering modes (front, concentric, transverse) for stable travel under load.
  • Suitable for agricultural plots and narrow passages.
• INTUITIVE NAVIGATION
  • 7" display with detailed, depth-like graphics.
  • Simple navigation via four buttons on the panel.
  • Anti-tip indicators and anti-scratch, anti-fingerprint mineral glass for clear visibility.
• HIGH COMFORT
  • Ergonomic controls, adjustable steering wheel and seat designed for long shifts.
  • Real-time operating data displayed clearly.
  • Soundproofing, storage compartments, radio, sun screen and air conditioning for operator comfort.
• ROBUST RELIABILITY
  • High-strength steel boom and reinforced frame for increased load capability.
  • Double-cylinder hydraulic accessory lock for maximum stability.
• OLIVE SHAKER KIT (prearrangement)
  • Pre-configuration for mechanical harvesting of olives, dried and hanging fruits.
  • Compatible with SICMA vibrating heads (high frequency, double speed, bidirectional); two-jaw gripper is self-braking and self-centering.
• DIECI TELEMATIC SYSTEM (DTS)
  • Remote monitoring of operating parameters and usage control.
  • Cloud data supports maintenance scheduling and fleet cost optimization.
  • Geolocation for theft prevention and asset protection.

Technical specifications

• Maximum capacity: 2600 kg
• Maximum lifting height: 5.73 m
• Maximum power: 55 kW (74 HP)
• Dimensions:
  - Ground clearance: 250 mm
  - Overall length: 4100 mm
  - Cab height: 1955 mm
  - Width: 1860 mm
  - Turning radius: 3380 mm
• Performance:
  - Maximum capacity: 2600 kg
  - Maximum lifting height: 5.73 m
  - Maximum height on wheels: 5.73 m
  - Breakout force: 5510 daN
  - Drawbar pull: 4400 daN
  - Maximum speed: 30 km/h
• Weight:
  - Unladen weight: 5100 kg
• Engine:
  - Brand: KUBOTA
  - Fuel: Diesel
  - Displacement: 3331 cm3
  - Maximum power: 55 kW (74 HP)
  - Emission standard: Stage V / Tier 4f
• Hydraulic circuit:
  - Pump flow: 80 l/min
  - Maximum pressure: 23 MPa
• Transmission:
  - Single-speed hydrostatic transmission with variable displacement pump
• Tires:
  - Standard tires: 12-16.5"
