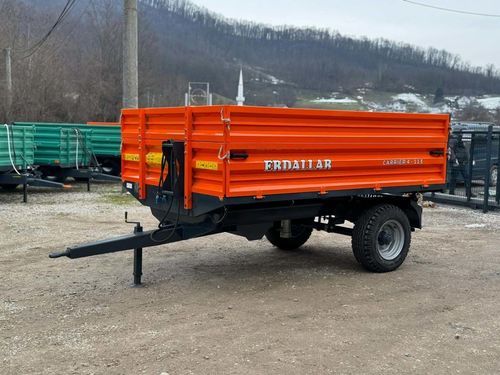

Tipping trailer RMK-40-13
single-axleagricultural4 ton

Add to favorites

Compare this product

Go to the ERDALLAR AGRICULTURAL MACHINERY website for more information

Characteristics

Construction: tipping
Number of axles: single-axle
Application: agricultural
Payload: 4 ton
Brake system: with hydraulic braking, with pneumatic braking
Other characteristic: 3-way, harvesting
Empty weight: 1,200 kg
(2,645.5 lb)
Recommended power: 20.5 kW
(27.9 hp)
Load volume: 3.6 m³
(127.133 ft³)
Loading case lenght: 3,010 mm
(118.5 in)
Loading case width: 1,950 mm
(76.8 in)
Loading case hight: 800 mm
(31.5 in)

Description

standard equipments: permissible weight: 5000 kg loading capacity: 3500 kg empty weight: 1200 kg loading volume: 3,6 m3 loading space: 5,4 m2 back cover discharge window stairs rear brake lights rear brake lights protective sheet rear fenders overall dimensions: 4160/2045/1680 mm side wall height: 400 + 300 mm base & wall thickness: 3 / 2,5 mm chassis floor height from the ground: 1020 mm tire track width: 1560 mm tires: 9.00/16-12K maximum speed: 30 km/h tipping system: 3 way tipping angle (back&sides): 50 /45 ^ loading bag RAL code: 2004 chassis RAL code: 7024 options (can be bought): leaf spring hydraulic brake hydraulic jack air brake air&hydraulic combined brake system air system handbrake load indexed air brake adjustment system tire option 12,5/80-15,3 back hitch plastic wheel chock additional 25 cm additional 30 cm plastic soap water tank grain discharge screw with lift tent spare tire (should be asked)
