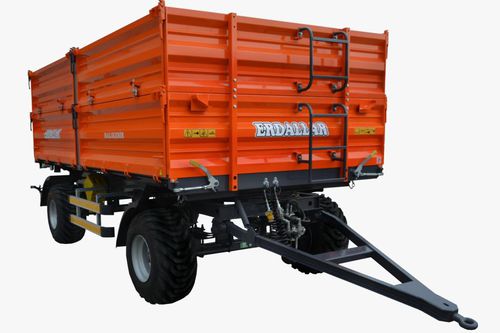

Tipping trailer DNR-80-23
2-axleagricultural8 ton

Add to favorites

Compare this product

Go to the ERDALLAR AGRICULTURAL MACHINERY website for more information

Characteristics

Construction: tipping
Number of axles: 2-axle
Application: agricultural
Payload: 8 ton
Brake system: with hydraulic braking, with pneumatic braking
Other characteristic: 3-way
Empty weight: 2,800 kg
(6,172.9 lb)
Recommended power: 44.1 kW
(60 hp)
Load volume: 9.2 m³
(324.895 ft³)
Loading case lenght: 4,000 mm
(157.5 in)
Loading case width: 2,300 mm
(90.6 in)
Loading case hight: 1,000 mm
(39.4 in)

Description

standard equipments: permissible weight: 8900 kg loading capacity: 8120 kg empty weight: 2800 kg loading volume: 9,2 m3 loading space: 9,2 m2 back cover discharge window stairs rear brake lights rear brake lights protective sheet rear fenders overall dimensions: 6390/2420/2200 mm side wall height: 500 + 500 mm base & wall thickness: 4 / 2 mm chassis floor height from the ground: 950 mm tire track width: 1750 mm parabolic springs tires: 400/60-R15,5 maximum speed: 40 km/h tipping system: 3 way required tractor power: 60 / 44,1 hp/kw tipping angle (back&sides): 50 /45 ^ loading bag RAL code: 2004 chassis RAL code: 7024 options (can be bought): hydraulic brake air brake air&hydraulic combined brake system air system handbrake load indexed air brake adjustment system tire option 500/50-17 hydraulic connection for rear trailer brake connection for rear trailer electrical socket for rear trailer back hitch plastic wheel chock additional 30 cm additional 50 cm plastic soap water tank bicycle rack position lights lane tracking lights front fenders grain discharge screw with lift tent spare tire (should be asked)
