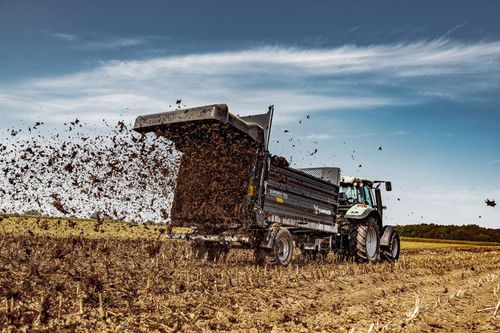

Towed manure spreader SUPERFEX 700

verticals beaterssingle-axle

The compact, smooth, efficient and DLG tested spreaders of the Superfex series with a wide operating range are characterized by optimal spreading of all agricultural goods. The Superfex spreaders are available with both single-axle and tandem-axle, with either standard or universal spreading unit with comprehensive standard equipment and provide a unique value for money. With a large choice of options, the spreader can be equipped for individual needs and requirements. HIGHLIGHTS CHASSIS Fully enclosed, galvanized steel chassis with integrated pipes and drive shaft, adjustable drawbar for upper or lower connection or over-run brake, fix towing eye D40 mm, landing gears (with gear box, double speed, three-stages), wheel chocks AXLE Heavy duty axle with 6-stud rims, track 1700 mm, axle load 7500 kg/axle, brake cam 300 x 80 mm, brake load 8000 kg/axle, Brakes: 1L Hydraulic brake Heavy duty FAD-axle with 6-stud rims, track 1650 mm, axle load 7500 kg/axle at 25 km/h and 6600 kg/axle at 40 km/h, brake cam 300 x 80 mm, brake load 8000 kg/axle at 25 km/h and 5000 kg/axle at 40 km/h Brakes: Overrunning brake BODY Framework profile, steel sideboards 500 mm (FUHRMANN profile), collapsible boards opening, the scraper bottom made of 3 mm thick sheet metal with special corrosion-resistant metal coating Magnelis®, front safety net DRIVE Wide-angle WALTERSCHEID PTO drive shaft over continuous drive shaft to shaft with overload clutch 2500 Nm, operating at 540 rpm
