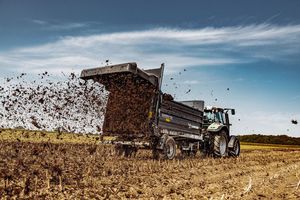

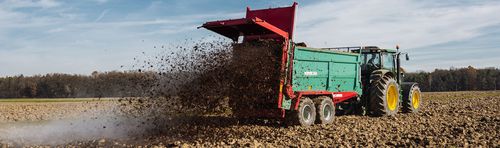

Towed manure spreader ULTRAFEX 1600

verticals beaterstandem

With models from 12 to 16 tonnes gross weight, these new machines are suitable to large farms, machine cooperatives, agricultural service contractors, as well as users in other industries. The sturdy self-supporting body has a vertical spreader unit and tightly sealing volume flap for silage transport. This series closes the gap between Farmtech’s middle class Superfex and professional Megafex lines. HIGHLIGHTS CHASSIS Frame from profile 300 x 100 x 5 mm, tandem chassis with parabolic springs, high drawbar hitch with fix towing eye D40 mm, landing gears (with gear box, double speed, three-stages), wheel chocks AXLE Two heavy duty ADR-axles with 10-stud rims, track 1850 mm, wheelbase 1350 mm, axle load 11500 kg/axle, brake cam 406 x 120 mm BRAKES Hydraulic brake with mechanical valve and ALB or dual-line airbrake system with ALB on all four wheels, separate parking brake BODY U-framework profile 200 mm, steel sidewalls 1000 mm high with collapsible steel extension boards 350 mm, absolute smooth inner walls, steel floor 4 mm thick, plug-in view grill, hydraulic flap door, mudguards DRIVE Wide-angle WALTERSCHEID PTO drive shaft over continuous drive shaft with overload and overrunning clutch, cam-type cut-out clutch 1500 Nm, operating at 1000 rpm FLOOR CONVEYOR Hydraulic drive with hydraulic motor and spur gear, stepless speed control, forward and reverse flow, 4 high-strength round steel chains (14 x 50 mm) with sturdy floor strips, floor conveyor feed can be easily operated from the tractor cabin, automatic chain tensioner
