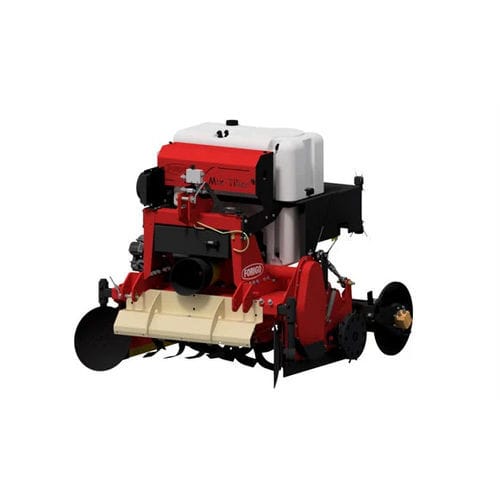

Basic machine
Stone burier technology work system
Universal 3 point linkage Cat. 2
Single speed gearbox 540 rpm PTO
Lateral transmission driven by chain in oil bath
Automatic chain tensioner on spring
Opposite side transmission in oil bath
Front dual metal face seals in oil bath on rotors
Rotor fitting 6x spade blades per flange
Wearing steel protection counter-flanges
Working depth adjustable by crank handles
Selector rake on springs
Cardan shaft with shear bolt torque limiter SB type (1”3/8 Z=6 tractor side yoke)
Liquid fumigants distribution system:
200 litres polyethylene tank up to mod. 150
400 litres polyethylene tank from mod. 170 to mod. 250
Reserve tank for clear water
Polyethylene pump
Product maximum pressure valve
Capacity control by proportional valve
Nozzles opening/closing section valve
Multifunction valve for product aspiration, work,
cleaning and draining
In-line Removable filters
Moving speed proportioned distribution of the product
Lateral wheel for speed check
In-line flow-meter for distribution management
Nozzles with ceramic inserts
EPDM pipes and connections
Inox pressure gauge AISI316
Pipe for product aspiration and draining
On board computer for distribution management
