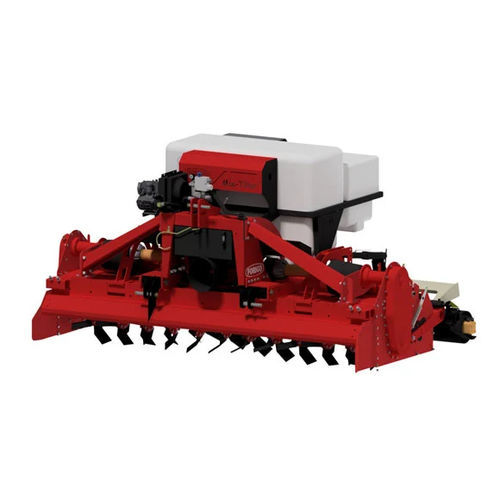

Rotary tiller MT45 series

Basic machine G45 STONE BURIER OPERATING SYSTEM: Universal 3-point linkage Cat. 2 & 3 Swinging arms tractor coupling Single speed gearbox 540 rpm PTO up to mod. 400 Single speed gearbox 1000 rpm PTO from mod. 420 Double lateral transmission driven by chain in oil bath up tp mod. 400 Double lateral transmission driven by 3 gears in oil bath from mod. 420 Single rotor up to mod. 400 Dual rotor system with central eradicator tine from mod. 420 Front dual metal face seals in oil bath on rotors Rotor fitting 6x spade blades per flange Wearing steel protection counter-flanges High resistance steel side panels Lateral transmissions with cardan shafts Rear double standard selector rake Pair of lateral wearing rods Cardan shaft with shear bolt torque limiter SB type (1”3/8 Z=6 tractor side yoke) up to mod. 400 Central cardan shaft with guards + 2 lateral cardan shafts with shear bolt torque limiter SB type (1”3/8 Z=6 tractor side yoke) from mod. 420 LIQUID FUMIGANTS DISTRIBUTION SYSTEM: 1x400 Litres polyethylene tank Stock tank for clear water Polyethylene diaphragm pump Max pressure valve for product Flow control proportional valve Nozzles opening/closing section valve Multifunction valve for product loading, work, cleaning and draining In-line removable filters Distribution proportional to the working speed GPS sensor In-line flow-meter for distribution management Nozzles with ceramic inserts EPDM pipes and fittings AISI 316 s/steel pressure gauge Pipe for product loading and draining On board computer for distribution management
