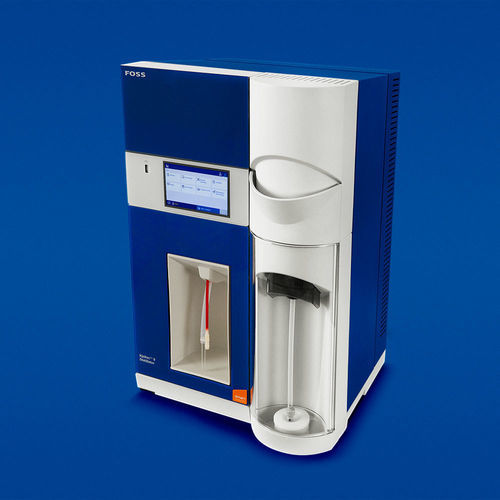

Distillation analyzer Kjeltec™ 9

animal feedproteinbenchtop

Overview
The Kjeltec™ 9 Distillator is a distillation unit designed primarily for automated protein analysis following the Kjeldahl method but can be used for various laboratory distillation tasks. It is intended for laboratories processing low to medium daily sample volumes and employing multiple distillation protocols.

Value
Automated protein analysis with straightforward operation and data handling, reduced operator time and lower risk of error. Optional Alerts and Notifications support high instrument uptime.

Sample type

• Raw materials and finished products in food, feed and agriculture laboratories.

Parameters

• Nitrogen
• Protein
• Ammonia

Key features

• SAfE mode for secure distillation of samples that form salt cakes and bellows pumps for precise reagent dosing.
• Variable-output steam generator extends applicability to other volatile components.
• Accurate reagent dispensing to reduce cost per test.
• Self-adjusting cooling-water system to conserve water and reduce running costs.
• Long-life components and corrosion-resistant materials; alkali-resistant plastic splash head/tube draining vessel for prolonged instrument lifetime.

Accessories

• Manual titration unit complete, 50 ml
• Basket for 20 receiver flasks (250 ml)
• Receiver flasks, 250 ml (set of 10)
• Kit for distillation by-pass
• Cable for connection of external titrator

Technical specifications

• Performance data at 230 V
• Analysis time: 3.5 minutes at 30 mg N (6.5 minutes at 200 mg N)
• Distillation capacity: ~40 ml/min at 230 V (at 100% steam addition)
• Measuring range: 0.1 - 210 mg N
• Reproducibility: 1% RSD (including the digestion step)
• Recovery: 99.5 - 100.5% at nitrogen levels between 1 - 200 mg N
• Tube draining: 200 ml in less than 10 seconds
• Reagent pump volume: 0 - 150 ml in steps of 10 ml
• Delay: 0 - 1800 seconds
• SAfE (FOSS pioneered): Auto 5 seconds
• Variable steam addition: 30-100% in steps of 10%
• Software: FossCare™, SmartCare™
• Installation requirements:
• Power supply: 200 - 240 VAC 50 - 60 Hz
• Tolerable voltage variation: ± 10%
• Power consumption: 3000 W
• Water consumption (during distillation only): 3 l/min at water temp of 30°C; 1 l/min at water temp of 15°C
  *Circulating Cooler recommended at >30 °C.
• Ambient temperature: 5 - 40°C
• Ambient humidity: Max. 80% relative
• Drain: For cooling water only
• Weight net: 46 kg
• Dimensions (w×d×h) cm: 50 × 48 × 76
• SmartAnalytics: Instrument is SmartAnalytics enabled to turn data into actionable insights for efficiency, accuracy and uptime across sites.
