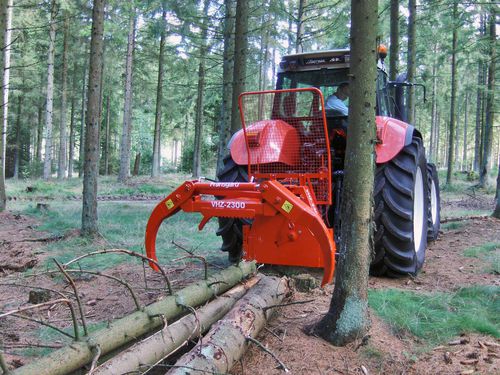

Forestry log grapple VHZ-2300

for tractors

The VHZ grapple tongs from Fransgård are very useful when the logs are lying in a mess after a storm, or you are simply cleaning up the forest. The machine easily handles the task of efficiently and quickly moving whole or cut logs. The grapple tong's suspension, with built-in 3 tonne winch, is extremely flexible, allowing logs to be hauled out of hard-to-reach areas while the boom allows the logs to be stacked. Combi machine increases flexibility The VHZ-2300 is the same machine as the HZ-2300 except for the three-point suspension. The three-point suspension of the VHZ-2300 incorporates a 3-tonne winch, making the machine even more flexible. The primary task is of course the use of the grapple tongs, but with the possibility of pulling out a log with the winch, the VHZ-2300 becomes a very useful multi-purpose machine that can be used for many purposes. Technical data: Opening width:2300 mm. Hydraulic connections.:2 double Swing cylinder.:Yes Swing radius.:+ / - 43° Tractive force, winch.:3 tonnes Winch wire:9 mm x 30 m Closing force.:6 tonnes Weight:395 kg. Recommended tractor HP.:50-100 HP. Closing cylinder The powerful double-acting cylinder ensures that the logs are held firmly. Tongs The specially designed tongs close past each other, providing a very stable tool Swing cylinder The swing cylinder can rotate up to 43 degrees to either side and is a great help when loading the logs. When extracting long logs, it is IMPORTANT that this cylinder is set in the floating position. Parallel bar The solid parallel bar is safely positioned behind the large closing cylinder and is thus highly protected against external shocks and impacts.
