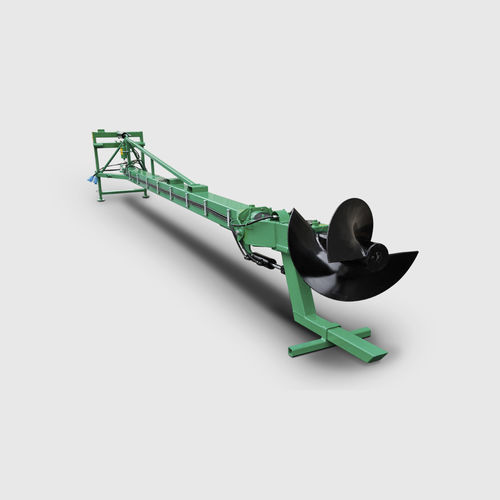

Vertical agitator ProManure E2500

hydraulicfixed

The far-reaching articulated agitator with its strong 3-point hitch agitates the content of a concrete pit safely and efficiently. Key Features •Agitation is achieved by the pushing motion of the Propeller; •Fixed or articulated Propeller; •24" (610 mm) diameter Propeller; •24" (610 mm) or 32" (811 mm) Pitch depending on tractor horse-power; •Knife on propeller to cut fibrous material; •Agitation of up to 33 600 US gpm (127 290 lpm); •Heavy-duty driveline and #55 PTO – 540 RPM only; •Easy access for maintenance of the driveline joint; •Length of agitator is 27' (8,2 m). Typical Application To agitate manure stored in a concrete pit up to 16' (4,8 m) deep for dairy manure and up to 13' (4 m) deep for hog slurry. Articulated Propeller The Articulated PTO Agitator is available with a fixed propeller or with an up and down articulation. This articulation aims to create more turbulence and reduces agitation time. The 20° upward articulation allows you to break the crust from underneath. The 20° downward articulation forces the crust pieces towards the propeller and agitates sediments •Driveline articulation in oil bath. Options •30° sideways articulation, to agitate a wider surface area. •Adjustable heavy-duty 3-point hitch. •Wheels and tow bar kit.
