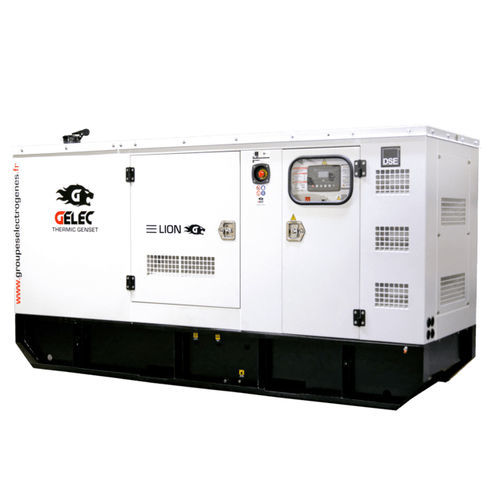

Diesel generator set LION-480YCE3three-phasestationaryair-cooled
Add to favorites
Compare this product
Characteristics
- Type
- diesel
- Phase
- three-phase
- Portability
- stationary
- Cooling system
- air-cooled
- Domain
- agricultural
- Power
Max.: 401 kW
(545.2 hp)438 kW
(595.5 hp)Min.: 0 kW
(0 hp)- Voltage
Max.: 400 V
Min.: 230 V
- Rotational speed
1,500 rpm
(9,425 rad.min-1)- Fuel tank capacity
1,000 l
(264.2 gal)
Description
Number of cylinders 6
Autostart optional
PRODUCT INFORMATION
GENERAL DATAS :
Power factor : 0.8 (cosΦ)
Frequency : 50 Hz
Fuel tank autonomy at 75% : 14 hours
Engine specifications :
Number of cylinders : 6
Governor type : electronic
Specifications : 4-cycle engine, direct fuel injection , liquid-based cooling
Displacement : 16,35 L
Maximum standby power at rated rotation 1500tr/min : 545 Cv
Compression ratio : 14:1
Engine starting type : electrical 24V
Air inlet system : Turbocompressed-intercooler
Alternator specifications :
Excitation system : Self Excited
AVR : Stamford
Voltage regulation type : electronic
This genset is equiped with four poles thermal magnetic circuit breaker with ajustable differential switches and with a DEEPSEA control panel. An automatic transfer switch system can be added.
