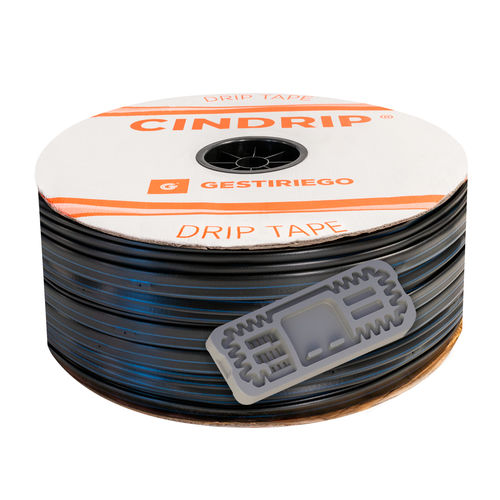

PE tape CINDRIP NANO

Description
CINDRIP NANO is a drip irrigation tape designed for row crops. It integrates nano-turbulent flat emitters that deliver highly uniform flow and precise water distribution. Available in compact rolls, the product supports long lateral lengths and resists UV and common agrochemicals.

Advantages and benefits

• High uniformity and precision in emitted flow.
• Emitter with low coefficient of variation (< 3%).
• Anti-clogging design due to integrated prefilter geometry.
• Manufactured from quality polymers for long service life.
• Resistant to UV and agricultural chemicals.
• Enables long lateral runs without losing efficiency.
• Reduces installation and maintenance costs.
• Compact rolls for easier storage, transport and handling.
• Versatile configurations for different crops and conditions.

Technical specifications

• Type: Drip irrigation tape with nano-turbulent flat emitter
• Thickness: 6 MIL (0.15 mm) and 8 MIL (0.20 mm)
• Nominal diameters: 16 mm and 22 mm
• Flow rates: 1.2 / 1.6 / 2.0 l/h (typical options)
• Available flows: 1.0 l/h and 1.3 l/h (specific codes)
• Working pressure: 0.8 – 1.0 bar
• Maximum pressure: up to 1.0 bar depending on model
• Emitter spacing: 0.10 / 0.15 / 0.20 / 0.25 / 0.30 m
• Coefficient of variation: < 3%
• Roll lengths: up to 3,800 m depending on diameter and thickness
• Resistance: UV and agrochemical resistant

Applications

• Intensive row crops
• Seasonal horticulture
• Tomato
• Corn
• Lettuce
• Melon
• Surface drip irrigation systems

Technical table
Parameter — Value
Type — Drip irrigation tape with nano-turbulent flat emitter
Thickness — 6 MIL (0.15 mm) / 8 MIL (0.20 mm)
Nominal diameter — 16 mm / 22 mm
Flow — 1.2 / 1.6 / 2.0 l/h (typical)
Working pressure — 0.8 – 1.0 bar
Maximum pressure — Up to 1.0 bar (depending on model)
Emitter spacing — 0.10 / 0.15 / 0.20 / 0.25 / 0.30 m
Coefficient of variation — < 3%
Roll length — Up to 3,800 m
Resistance — UV and agrochemical resistant
