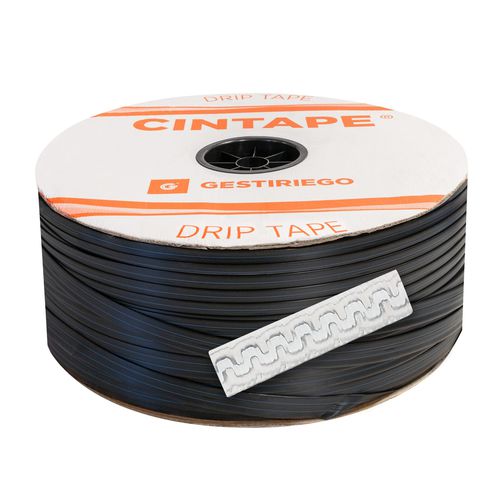

Tape CINTAPE

Product overview
CINTAPE is a drip irrigation tape with an integrated turbulent-labyrinth emitter. The flat emitter positioned on the tape inner wall improves emission uniformity and reduces the risk of clogging. Recommended inlet pressure: 0.7 bar.

Technical data
Spacing and flow options (roll length: 2800 m):
0.10 m — 0.6 l/h (code 462176) ; 0.9 l/h (code 461926) ; 1.2 l/h (code 462179) — Roll: 2800 m
0.20 m — 0.6 l/h (code 462167) ; 0.9 l/h (code 462169) ; 1.2 l/h (code 462168) — Roll: 2800 m
0.30 m — 0.6 l/h (code 462178) ; 0.9 l/h (code 462175) ; 1.2 l/h (code 462181) — Roll: 2800 m

Features / benefits

• Integrated turbulent-labyrinth emitter ensuring stable, uniform discharge.
• Anti-clogging design using the emitter's filtering surface.
• Extruded emitter geometry consistent along the branch to maintain uniform flow.
• Design flexibility to adapt spacing and flow to crop requirements.
• Long lateral lengths achievable for selected flow and spacing, reducing manifold and fitting needs.
• Long roll lengths for optimized storage, transport and on-site handling.
• Resistant to UV exposure and common agricultural chemicals/fertilizers.

Applications
Suitable for intensive and seasonal crops in surface drip irrigation systems. Recommended for crops requiring short emitter spacing and precise water placement to improve water use efficiency and crop uniformity.

Specifications / technical details

• Commercial name / series: CINTAPE
• Nominal diameter: Ø16
• Wall thickness: 6 MIL (0.15 mm)
• Recommended inlet pressure: 0.7 bar
• Available emitter flow rates: 0.6 l/h, 0.9 l/h, 1.2 l/h
• Available spacings: 0.10 m / 0.20 m / 0.30 m
• Roll length (example): 2800 m
• Product codes by spacing/flow: 0.10 m → 0.6 l/h: 462176 ; 0.9 l/h: 461926 ; 1.2 l/h: 462179 ; 0.20 m → 0.6 l/h: 462167 ; 0.9 l/h: 462169 ; 1.2 l/h: 462168 ; 0.30 m → 0.6 l/h: 462178 ; 0.9 l/h: 462175 ; 1.2 l/h: 462181
• Emitter type: integrated turbulent labyrinth (flat emitter)
• Anti-clogging feature: emitter filtering surface
• Material note: polymer formulation designed for irrigation use with UV stabilisation and chemical resistance
