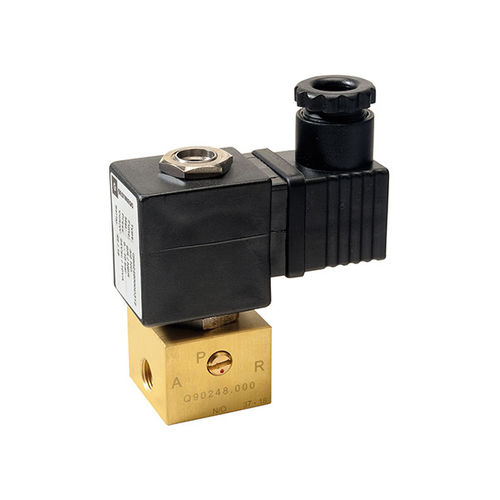

Irrigation solenoid valve 457764

3-wayon/off

Overview

• GTR SOLENOID — direct-control solenoid valve by GESTIRIEGO for irrigation applications
• Voltage: 24V, 12V; other voltages on request
• Body materials: aluminium, brass (AISI303, AISI316 on request)
• Coil gasket materials: Viton, EPDM

Technical table
MODEL | CONSUMPTION (W) | UNIT. BOX | CODE
3-WAY N.C. 12V | 6 | 8 | 457764
3-WAY N.O. 12V | 6 | 8 | 457758
3-WAY N.O. 24V | 6 | 8 | 457761
3-WAY N.C. 24V | 6 | 8 | 457766
LOW CONSUMPTION | 160 | 175 | 450828
3-WAY N.O. 24V | 3 | 8 | 457770
3-WAY N.C. 24V | 3 | 8 | 457768

GTR SOLENOID characteristics

• Construction: piston
• Primary application: irrigation
• Available body materials: brass (AISI303, AISI316), aluminium (on request)
• Compatible fluids: neutral liquids and gases
• Pressure range: 0 to 10 bar
• Ambient temperature: up to +35ºC
• Fluid temperature: -10ºC to +80ºC
• Orifice size: 1.2 to 2.0 mm
• Connector thread: G1/8”
• Viscosity: 22 csT
• Tolerances: +10% / -10%
• Mounting: installable in any position

Technical specifications

• Model name: GTR SOLENOID
• Voltage options: 24V, 12V (other voltages on request)
• Body materials: aluminium, brass (AISI303, AISI316 on request)
• Coil gasket: Viton, EPDM
• Construction type: piston
• Applications: irrigation
• Fluid compatibility: neutral liquids and gases
• Working pressure: 0–10 bar
• Operating ambient temperature: up to +35ºC
• Fluid temperature range: -10ºC to +80ºC
• Orifice: 1.2–2.0 mm
• Connector: G1/8”
• Viscosity rating: 22 csT
• Tolerances: +10% / -10%
• Mounting: any position
• Variants and packing: see technical table for model variants, consumption, units per box and codes
