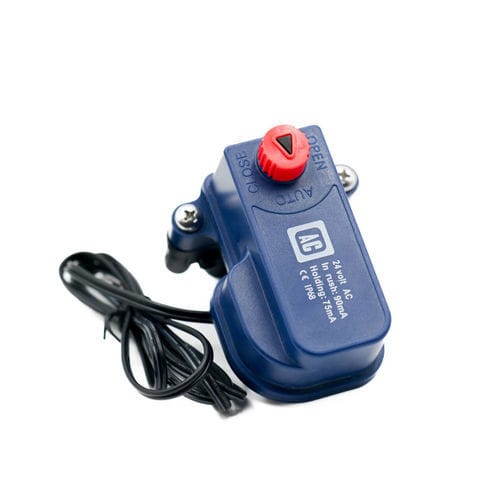

Irrigation solenoid valve 506041

on/off

Product
SOLENOID VALVE AQUADRIVE 24V (AC/DC) / 12V (Pulse). Technical datasheet available.

Technical data

• AC(DC) version: Voltage 24V AC or DC — starting current 90 mA; holding current 75 mA.
• Pulse version: Voltage 12V DC — pulse duration 260 ms; recommended storage capacitor ≥ 4700 μF.
• Pressure range: 0–10 bar (0–140 psi).
• Maximum ambient temperature: 60ºC (140ºF); maximum fluid temperature: 60ºC (140ºF).
• Filtration: minimum 80 mesh.
• Hydraulic connection ports: 1/8” BSP.
• Cable length: 150 cm; pulse/boost version wire colours: red = positive, black = negative.

Models / Codes
MODEL | CODE
AC 2 WIRES | 506041
DC 2 WIRES | 506043
PULSE 2 WIRES | 506042

Key features

• Type: Electromechanical solenoid valve for automatic irrigation systems.
• Available versions: 24V (AC/DC) two-wire; 12V pulse two-wire.
• Installation: inline hydraulic ports 1/8” BSP; recommended filtration ≥ 80 mesh.
• Applications: drip irrigation and sprinkler systems controlled by timers and controllers.
