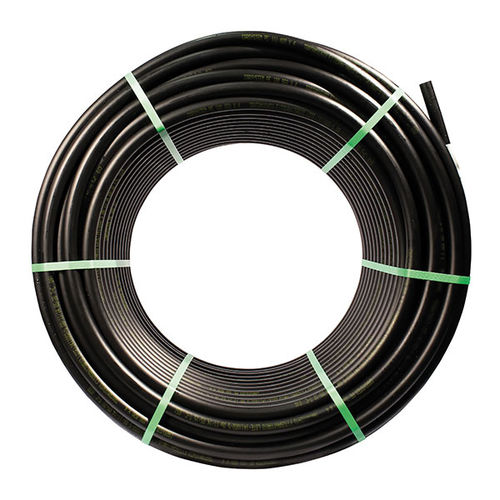

Air distribution pipe 353054

PE

Overview
Pipes in PE-100 designed for phytosanitary treatments, compatible with compressed air distribution and fumigation systems.

Applications

• Distribution of phytosanitary products using compressed air
• Fumigation and controlled-atmosphere treatments
• Agricultural and horticultural installations and equipment

Materials and manufacturing
Manufactured from PE-100 material, corrosion-resistant and produced on automated extrusion lines with controlled process parameters to ensure dimensional consistency.

Technical data (table)
TYPE | Ø EXT. (mm) | FLOW (l/h) | WALL (mm) | ROLL (m) | CODE
PE-100 | 16 | 380 | 3.2 | 200 | 353054
PE-100 | 20 | 588 | 4.0 | 100 | 353058
PE-100 | 25 | 1630 | 3.5 | 100 | 353067
PE-100 | 25 | 1630 | 5.0 | 100 | 353063

Specifications

• Material: PE-100
• Available external diameters: 16 mm, 20 mm, 25 mm
• Nominal circulating flow examples: 380 l/h (Ø16), 588 l/h (Ø20), 1630 l/h (Ø25)
• Wall thickness examples: 3.2 mm (Ø16), 4.0 mm (Ø20), 3.5 mm and 5.0 mm variants (Ø25)
• Roll lengths: 200 m (Ø16), 100 m (Ø20 and Ø25)
• Product codes: 353054 (Ø16); 353058 (Ø20); 353067 (Ø25, 3.5 mm); 353063 (Ø25, 5.0 mm)
• R+D+i department with over 25 years of experience in product development for the sector
• Technical sales team provides personalised technical advice and after-sales support
