Hose LAY FLAT EVA

irrigationdrip irrigationsupply

Product

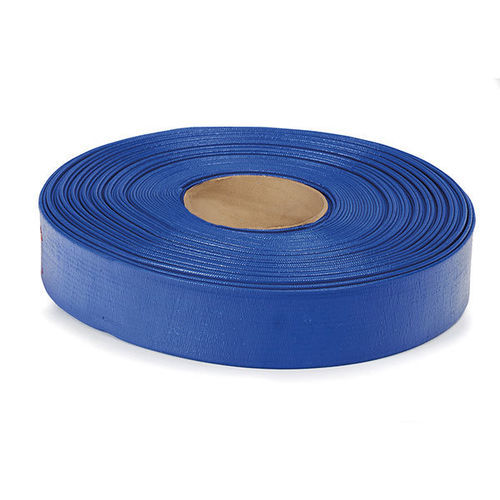

Flat irrigation hose LAY FLAT EVA — flexible flat hose for drip irrigation. Supplied in 100 m rolls.

Characteristics / Benefits

• Flexible flat hose manufactured in polyvinyl (PVC) with low-pressure triple-yarn interwoven mesh reinforcement.
• Supplied in 100 m rolls for standard installation lengths.

Specifications

• Suitable for low-pressure pipelines and for supplying drip irrigation systems.
• Available in different models from 1½” to 6” depending on nominal diameter.

Applications

• Agriculture, construction and mining. Operating ambient temperatures: -20 °C to 50 °C.

Technical table
58 x 2 | 3 | 12 | 461226
77 x 3 | 3 | 10 | 460455
102 x 4 | 3 | 8 | 460456

Technical specifications

• Product: LAY FLAT EVA (flexible flat irrigation hose).
• Material: Polyvinyl (PVC) with low-pressure triple-yarn interwoven mesh reinforcement.
• Length: Supplied in 100 m rolls.
• Intended use: Low-pressure pipelines for drip irrigation systems.
• Available nominal diameters/models: from 1½” to 6”.
• Temperature range (operating): -20 °C to 50 °C.
• Available sizes and codes: 58 x 2 mm — Working pressure 3 Kg/cm² — Burst pressure 12 Kg/cm² — Code 461226; 77 x 3 mm — Working pressure 3 Kg/cm² — Burst pressure 10 Kg/cm² — Code 460455; 102 x 4 mm — Working pressure 3 Kg/cm² — Burst pressure 8 Kg/cm² — Code 460456.
