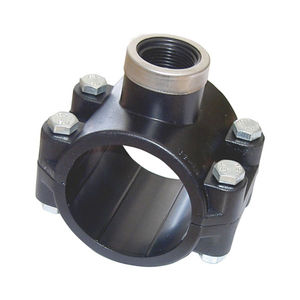

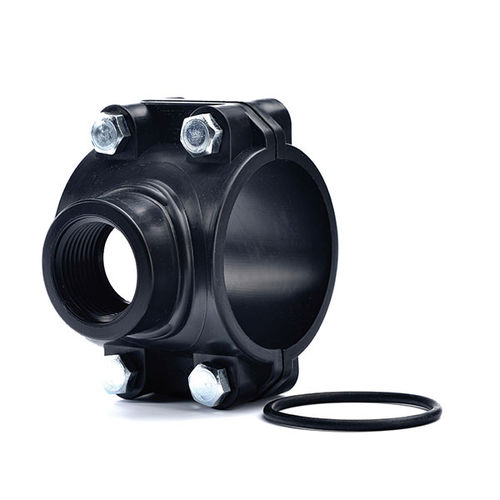

Saddle clamp 452254

Plastic saddles to bypass secondary lines of PE, PVC or PP main lines for irrigation, the transport of high-pressure water, chemical solutions and sludge. •BODY: PP-B polypropylene copolymer •O-RING: elastomeric rubber • REINFORCING RING: stainless steel •BOLTS: galvanised steel or stainless steel POLYPROPYLENE ACCESSORIES RANGE Clamping the part from Ø20 mm to Ø315 mm, the threaded part from Ø1/2” to Ø4” PRESSURE RANGE 16 bar at 20ºC for Ø20 saddles up to Ø110mm 6 bar at 20ºC for Ø125mm up to Ø315mm POLYPROPYLENE ACCESSORIES APPLICATIONS These accessories are suitable for use in drinking water supply systems. The accessories are suitable for exposure to sunlight (UV) and provide excellent chemical resistance.
