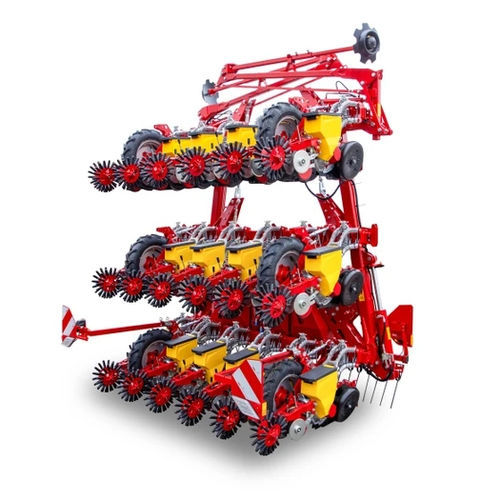

Disc precision seed drill MATRIX 1800

foldingdepth control

Product overview
The MATRIX 1800 is a mechanical precision seeder available in 12-row or 18-row configurations for planting beet, canola and root chicory seed. The seeding units are guided by a parallelogram suspension for accurate depth control and central seed placement. The unit offers selectable row widths of 45 or 50 cm and can operate in conventional seeding (after ploughing) or mulch seeding modes.

Highlights

• Precise seed placement: Low drop height ensures accurate seeding into the furrow.
• Fast field-to-field movement: Hydraulic lifting and folding for quick transport setup.
• Tool-free adjustments: Frame and single-row concept allow adjustments and wheel folding/locking without tools.
• Electrical single-row drive: Enables variable tuber/seed spacing, Clever Planting, Section Control, MATRIX-seed and creation of turnpike rows/harvest windows.
• Defined harvest windows: Select number of rows and distances to create bed markings for harvest management.
• Dust and splash protection: Snap-on lids with handles for secure closing of seed boxes.
• Ground contour adaptation: Revised parallelogram provides precise, central seed placement across uneven ground.

Standard equipment

• Selectable row width: 45 or 50 cm
• Mulch seeding equipment as standard
• Hydraulically foldable frame
• Seeding unit guided in a parallelogram
• Mechanical pressure load adjustable in four steps up to 90 kg per seeding unit; additional pressure load up to 120 kg in the tractor track
• Electrical drive of the cellular wheel
• Carrying wheels, size 5.00 - 15
• Optical sensors for monitoring the seeding process
• Two leading disc coulters with enlarged depth guiding wheels
• Various coulter variants available
• Pendular-mounted intermediate press wheels with three-stage pressure adjustment
• Height-adjustable disc-shaped furrow closer and fingertip press wheel with pressure adjustment
• 10 l seed hopper (capacity for 1.5 units of beet seed)
• Flap for fast discharge
• Operation via ISOBUS-compatible terminals (CCI 800, CCI 1200 or tractor terminal)

Technical specifications (excerpt)
R.00.033 MATRIX 1800 (requires 1 double-acting control valve)
Dimensions:
Length: 2240 mm
Length (transport): 1900 mm
Width at row width 45 cm: 8110 mm
Width (transport at row width 45 cm): 2930 mm

Specifications (summary)

• Model designation: R.00.033 MATRIX 1800 (requires 1 double-acting control valve)
• Rows: 12-row or 18-row mechanical precision seeder
• Row width: selectable 45 cm or 50 cm
• Operational modes: conventional seeding and mulch seeding
• Seeding hopper: 10 l (approx. 1.5 units of beet seed)
• Seeding unit guidance: parallelogram suspension for precise depth guidance
• Pressure load: mechanical, adjustable in four steps up to 90 kg per seeding unit (additional up to 120 kg in tractor track)
• Drive options: electrical single-row drive (optional features: Clever Planting, Section Control, MATRIX-seed, Variable Rate Control)
• Control/operation: ISOBUS compatible (CCI 800, CCI 1200 or tractor terminal)
• Transport/working dimensions (excerpt): Length 2240 mm; Length (transport) 1900 mm; Width (row width 45 cm) 8110 mm; Width (transport at 45 cm) 2930 mm
