6-rows haulm topper FT 300

3-point hitch

Product overview

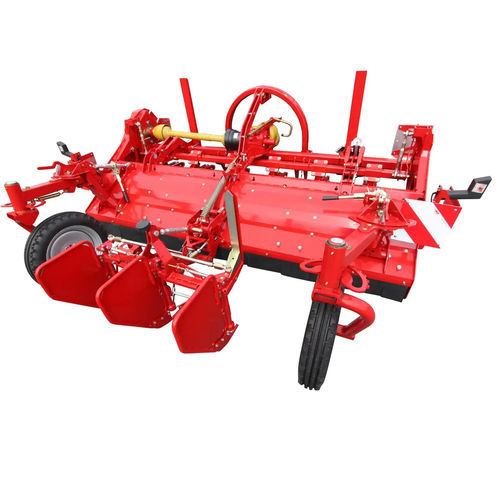

The 6-row Inline front topper FT 300 with its patented leaf discharge reliably avoids irritating blocking in the scalper area. The machine has been developed for the 1-phase system in combination with the ROOTSTER 604. The chopped leaves are put down on the ground rear of the scalper unit. This system ensures an optimum distribution of the chopped leaf mass, providing the best conditions for reduced soil cultivation. Flexible row width adjustment from 45 to 50 cm.

Key attributes

• 6-row configuration
• Front attachment (three-point linkage)
• Accurate scalping with patented Inline system for leaf discharge

Failure-free operation
The combination of the chopper and scalper unit as well as the Inline leaf-deposit system prevents blockages in the area of the scalper and ensures reliable operation.

Standard equipment

• Selectable row width of 45 to 50 cm (18 to 20 inch)
• Front attachment by three-point linkage
• Flail shaft with steel flails
• Parallel guided scalper unit with automatic cutting thickness
• The Inline system enables the shredded leaves to be deposited between the rows
• Working depth adjusted by two mechanically height-adjustable feeler wheels, foldable for road transport
• 2 wheels, dimension 4.50-16
• Power transmission via PTO shaft 1000 rpm

Technical specifications

• Length in transport position: 1900 mm
• Length in operating position: 2300 - 2600 mm
• Width: 3150 mm
• Channel width: 2930 mm
