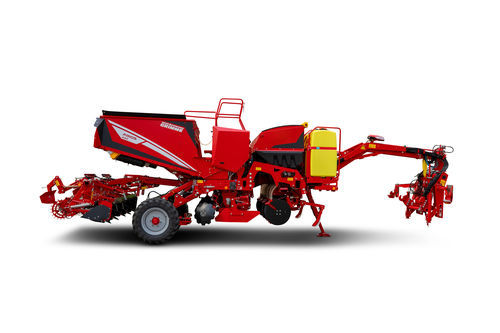

Potato planter PRIOS 440

manualautomatic4-row

Overview
The modular design of the PRIOS 440 allows multiple equipment configurations and an intuitive operator interface. Soil preparation can be carried out with any active soil-working tool using a gooseneck drawbar with a false chassis and separate lift system. At the same time, fertiliser, granules, tuber and furrow treatment products can be applied and potatoes can be placed. The redesigned hybrid ridge former ensures ideal ridge formation and high flexibility for different ridge requirements on any soil. The TerraProtect system can be integrated for effective soil erosion protection. With a road transport width below 3.00 m, this is the first fully type-approved 4-row planter with complete European type approval. Optional packages include Clever Planting, Section Control and density modulation with application maps. Connection to myGRIMME simplifies recording and viewing of machine and field data. The intuitive control concept combined with the Smart View video system provides continuous overview of the machine’s key functions.

Key data

• Configuration: 4-row potato planter
• Tilt hopper: capacity ~3.5 t
• Road transport width: below 3.00 m (full European type approval)
• Control concept: ISOBUS / GRIMME Digital Interface (GDI)
• Available assistance systems: Clever Planting, Section Control, density modulation, application maps
• Video system: Smart View (panoramic view, multiple cameras, Live / Slowmotion functions)

Advantages and functions

• Modular construction offering many equipment options
• Use of various soil-working tools thanks to gooseneck drawbar and false chassis
• Redesigned hybrid ridge former for stable, homogeneous and well-aerated ridges
• TerraProtect integration possible for erosion control
• Section Control and density modulation via application maps for input savings
• Road width < 3.00 m: easy transport without special permit

Standard equipment

• Hydraulic stand
• Mechanical lift drawbar
• Main chassis with four planting units
• Mechanical drive of units
• Row spacing 75 cm
• Tilt hopper capacity 3500 kg
• Stainless steel bottoms in units
• Choice of belt with cups
• Electric intensive shaker
• Quick-release planting units
• Trailing furrower shares mounted on parallelogram with four gauge wheels
• Individual spring-mounted covering device, serrated covering discs (510 mm diameter)
• Lift by drawbar and chassis
• Tracers with discs
• Mechanical tracer control
• Chassis with four wheels
• Tires 280/80-20
• ISOBUS

Options and special equipment (examples)

• Hitching: European-approved gooseneck drawbar with independent 3-point lift, mechanical telescopic drawbar, mechanical telescopic drawbar with steering
• Cultivation method / ridged version: sliding chassis, hydraulic ridge separator, separate depth guidance; 2-wheel chassis for manoeuvrability
• Plant protection and fertiliser distribution: sealed plastic hopper (cover), approx. 1,700 l fertiliser hopper; anti-clogging grids; calibration kits; liquid spray kit and tank installation (combinable)
• Ridge formation: hybrid ridge former combining classic cape and open-diablo former for stable, porous and well-ventilated ridges
• TerraProtect: subsoiler tines with stone protection, following dyker to reduce erosion and retain water
• Assistance systems: Section Control (row shut-off / Multiboom), density modulation, application maps, Clever Planting

Controls, comfort and telemetry

• Intuitive control via ISOBUS and GDI (GRIMME Digital Interface)
• Wireless transmission of settings, geolocation and machine data (myGRIMME, agrirouter)
• Smart View video system with multiple cameras, wide display, Live / Slowmotion; peripheral LED lighting

Technical data / specifications

• Model references: 2560-011 PRIOS 440; 2560-012 PRIOS 440 PRO
• Length: 5210–10275 mm
• Width at 75 cm spacing: 3280 mm
• Width at 90 cm spacing: 3880 mm
• Hopper filling height (machine lowered / raised): 1660 / 2100 mm
• Tilt hopper capacity: 3500 kg
• Unit spacing: 75 cm (standard)
• Tires: 280/80-20 (example)
• Unit bottoms: stainless steel
• Covering discs: 510 mm diameter, serrated
• Depth guidance: separate and independent guidance for soil-working tool and planting units
• Compatibility: ISOBUS, Section Control, density modulation, myGRIMME
