Self-propelled harvesting machine VARITRON 470

corn4-rowwith sieving systems

Overview

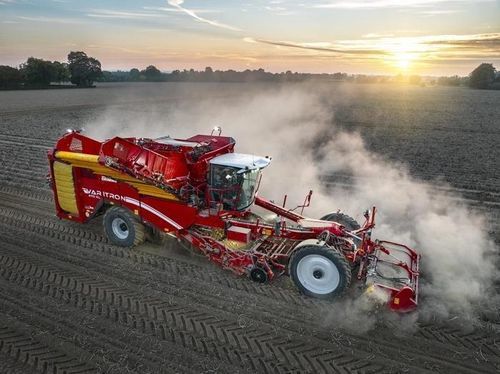

Self-propelled harvesters excel with the perfectly matched combination of performance, driving comfort and manoeuvrability. The resulting harvest reliability, even under the most difficult conditions, plays a decisive role in many cases. With the VARITRON 470, GRIMME offers a 4-row self-propelled harvester which can be equipped with an extensive range of separators. The VARITRON 470 achieves a high degree of manoeuvrability thanks to its wheeled chassis, which is fitted with large-volume tyres as standard and gives extreme soil protection in all conditions. A large number of automatic features for the harvesting process, which can all be conveniently controlled from the premium cabin, ensure a maximum working and driving comfort. The connection to myGRIMME facilitates the storage and retrieval of machine data and task data. And, thanks to the SmartView video system, you always have an overview of the most important machine functions.

Key features

• 4-row harvester
• High separation performance
• 460 HP (340 kW) power rating
• Wheeled chassis with large-volume tyres standard for extreme soil protection
• Extensive range of separators (single or double separators, MultiSep options)
• Numerous automatic harvesting functions controlled from the premium cabin
• Connectivity via myGRIMME for machine and task data storage and retrieval
• SmartView video system for overview of machine functions

Highlights / Feature modules

• NonstopBunker XL - The new XL bunker offers a volume of 13 m³, corresponding to approx. 9–11 tonnes depending on crop and impurities. The bunker unloading web has a width of 1.6 metres. Hopper extensions fold hydraulically for road travel. After each unloading the NonstopBunker can be refilled completely without stopping.
• Improved driving and operating comfort - Optional premium comfort cab with extra sound insulation, leather seats with active ventilation and seat heating, and a cooling compartment to keep drivers focused and rested during long working days.
• SmartView - Camera system (SmartView BASIC standard with 8 cameras; SmartView PRO optional up to 13 cameras). New higher-quality camera generation with zoom and slow-motion modes; live image transmission and overview for fine adjustment of separators and cleaning mechanisms.
• High separating effect - Optional more powerful spiral rollers for the roller separator. On machines with MultiSep and Heavy Duty drive it is possible to adjust distance and height of two pairs of rollers separately. Cleaning device below the first main web and clod breakers in the second main web available for heavy soils.
• Highest crop protection in its class - Separators are arranged downstream of main webs to keep drop height low; single or double separators upstream of the fine haulm elevator protect the harvested crop by maintaining a low drop height and preserving fine soil on the crop.

Standard equipment

• Pulled diablo roller intake unit with TerraControl
• Row width 75 cm
  • Main characteristic of the GentleFlow concept: the main web channel and following separators are designed for the full width of the machine. At the point where the rear axle is connected to chassis, the crop flow needs to be divided; this is done in a very gentle way.
• Intake web, 1st main web and 2nd main web hydraulically driven with independent speed adjustment
• Intake web, first and second main web, cone crop divider, fine haulm elevator and ring elevator are reversible
• Hydraulically driven and speed-adjustable rocker agitator in 1st main web
• Extracting roller against 1st main web
• 1200 mm wide ring elevator with canvas
• Speedtronic-Elevator: Fully automatic speed control of the elevator depending on its load
• Bunker web with canvas
• Bunker chain greasing system
• 2 steerable front wheels 270 / 95 R 54 with hydraulic side travel +/- 100 mm, steering angle +/- 63°
• 2 steerable rear wheels 1 x 900/60 R 32 l/h-side, 1 x 1050/50 R32 r/h-side, steering angle +/- 20°
• Hydrostatic single wheel drive with on-demand traction control (ASR)
• Mercedes-Benz (MTU) engine OM 470 LA: 340 kW / 460 HP stage V, using SCR exhaust technology (AdBlue)
• Driver cab with 6 LED working lights, heated and electrically adjustable mirrors and windshield wipers on all windows
• Compressor
• Comfort cab: Air-suspended seat, Climatronic, pneumatic folding mirrors, audio system prepared for Bluetooth mobile telephone system, windshield wipers and sunshade
• ErgoDrive operating concept with multi-functional lever (individual configuration of main functions), keypad integrated into ergonomic armrest and one touch-screen terminal type CCI 1200
• MemoryControl: For saving and re-use of specific harvest parameters
• Camera package SmartView BASIC including 8 cameras, integrated zoom, live slow motion, live image transmission via WLAN, 12 inch touch screen monitor and Visual Protect Pro
• Telemetric unit "GRIMME SmartConnect" as standard, with free connectivity to myGRIMME

Technical specifications (excerpt)
Dimensions
Length: 12810 - 15600 mm
Width at row width 75 cm: 3490 mm
Width at row width 90 cm: 3870 mm
Height: 4000 mm

Caractéristiques / spécifications techniques

• Model: VARITRON 470 (4-row)
• Engine: Mercedes-Benz (MTU) OM 470 LA, 340 kW / 460 HP, Stage V, SCR (AdBlue)
• Bunker: NonstopBunker XL volume 13 m³ (approx. 9–11 t depending on crop/impurities)
• Bunker unloading web width: 1.6 m
• Row widths: 75 cm (standard) and 90 cm option indicated in dimensions
• Ring elevator width: 1200 mm (with canvas)
• Drive: Hydrostatic single wheel drive with on-demand traction control (ASR)
• Steering / wheels: front wheels 270/95 R54 with hydraulic side travel ±100 mm, steering angle ±63°; rear wheels combinations 900/60 R32 and 1050/50 R32 with steering angle ±20°
• Separator options: single or double separators, MultiSep and Heavy Duty drive options, adjustable roller distances and heights, optional spiral rollers
• Automatic systems: Speedtronic-Elevator (automatic elevator speed control), many automatic harvesting assists controllable from cabin
• Operator environment: Premium / Comfort cab options including ErgoDrive, multi-functional lever, CCI 1200 touchscreen, MemoryControl, premium comfort cab features (sound insulation, ventilated/heated leather seats, cooling compartment)
• Camera systems: SmartView BASIC (8 cameras) standard; SmartView PRO optional up to 13 cameras with zoom and slow motion, live transmission
• Connectivity: GRIMME SmartConnect telemetry, free myGRIMME connectivity for data storage and retrieval
• Service features: bunker chain greasing system, reversible main webs and elevators for easy operation and maintenance
